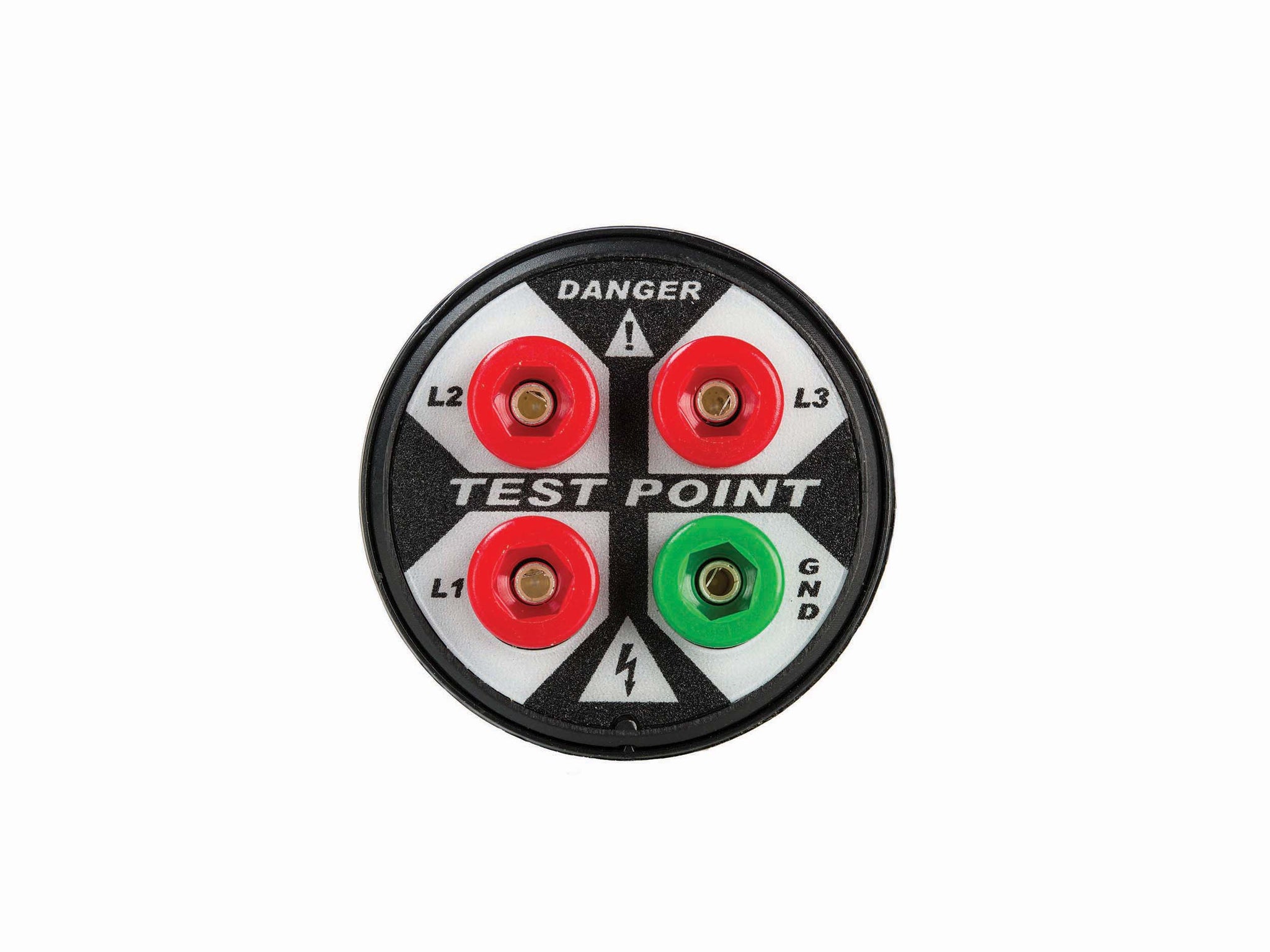

R-3MT-KIT-H | Absence of Voltage Safe-Test Point

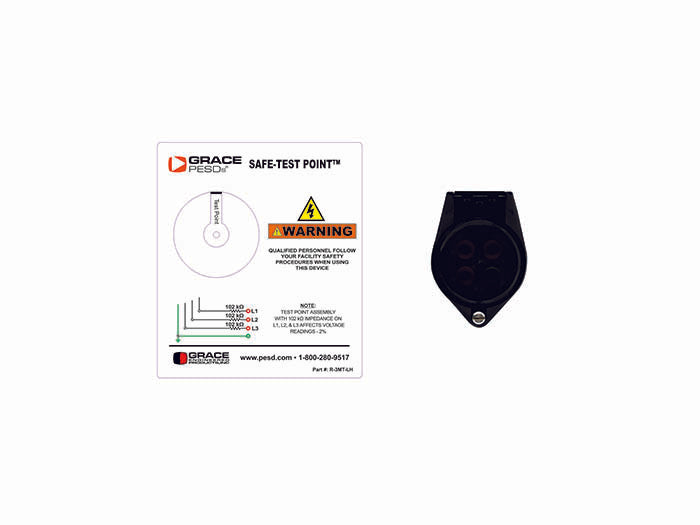

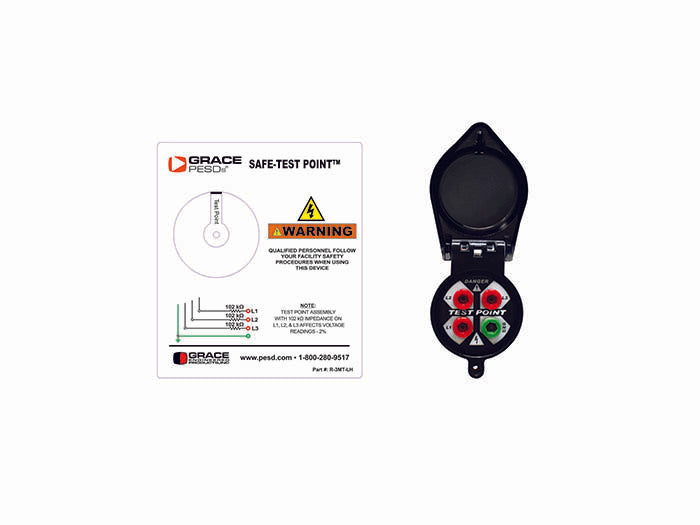

Absence of Voltage Safe-Test Point with Label and Dust Cap, Horizontal Mount
List Price
- Regular price
- $289.00
- Sale price
- $289.00
- Product Specifications
- Component Details
- Part Number R-3MT-KIT-H
- Electrical Specifications
- Operational Voltage Range AC Single or 3-Phase 0-600VAC phase to phase or phase to ground 0-400Hz
- Operational Voltage Range DC or Stored Energy 0-1000VDC, any (2) wires line-to-line or line-to-ground (UL Listed to 600VDC)
- Storage Temperature Range -45°C to + 85°C
- Operational Temperature Range -20°C to +55°C
- Mechanical Specifications
- Installation 30mm Pushbutton Hole
- UL Type 12 &13
- Orientation Horizontal
- Geometric Data
- Label Dimensions 4.323"W x 4.60"H
- Commercial Data
- Country of Origin Taiwan
- Schedule B Code 8538.90.8160
- Component Details
Approvals / Certifications
2D PDF File
2D DWG File
3D STEP File
Safe-Test Point Datasheet
Safe-Test Point Datasheet Spanish
Safe-Test Point High Impedance Technical Note
Safe-Test Point Installation Guide
