Name: P-P22R2-R3R0 | USB Ethernet 3" Round Panel Interface Connector
Brand: Grace Technologies
Price: 183.0 USD
Availability: InStock

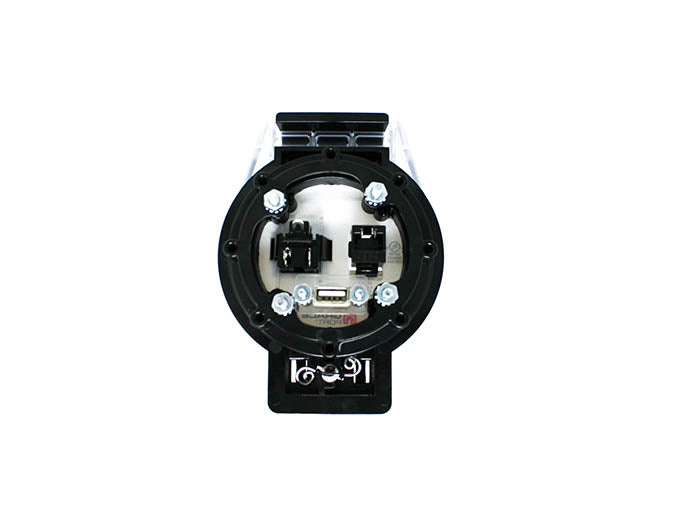

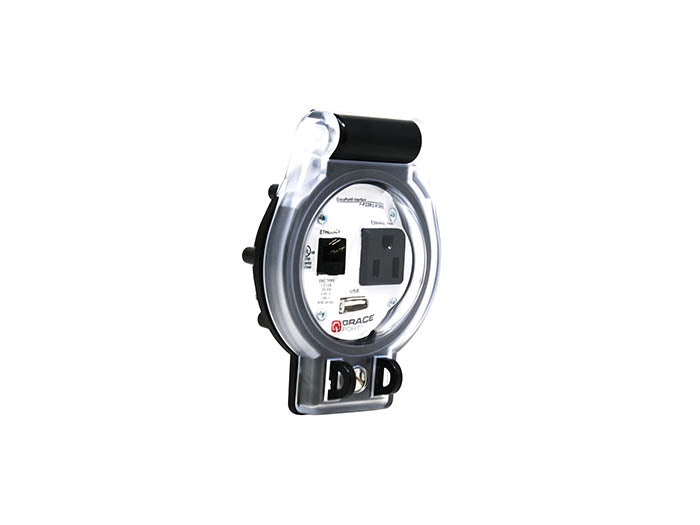

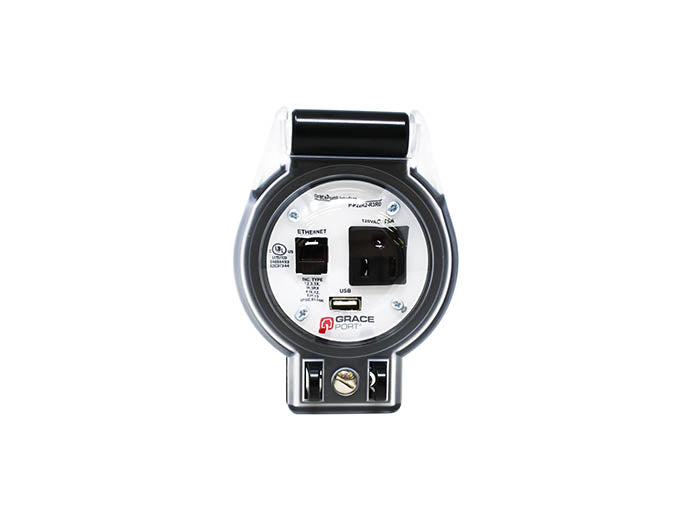

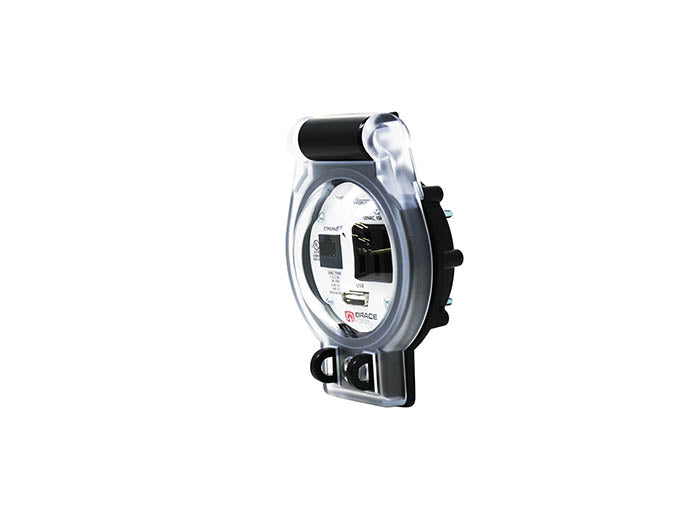

P-P22R2-R3R0 | USB Ethernet 3" Round Panel Interface Connector

UL Listed Panel Interface Connector with USB Type A/F to USB Type A/F; Category 5e Ethernet; Round Housing (3 in) Panel Mount Housing; Simplex Outlet ; No Circuit Breaker

List Price

Regular price: $183.00
Sale price: $183.00

Quantity

Quantity must be 1 or more

FIND DISTRIBUTORS Datasheet

Product Details

Product Specifications
- Product Description
  - Panel Interface Connector that typically mounts to the outside of a control panel housing. These programming ports eliminate the need to open the panel door and improve safety and compliance to NFPA 70e. We offer 15,000+ combinations of components and outlets.
- Component Details
  - Component Code P22
  - Component Quantity 1
  - Component Description USB Type A-A F/F
  - Component Type Bulkhead
  - Gender Front USB-A-F
  - Gender Back USB-A-F
  - Component Code R2
  - Component Quantity 1
  - Component Description Category 5e RJ45 Ethernet
  - Component Type Bulkhead
  - Gender Front RJ45-F
  - Gender Back RJ45-F
- Electrical Specifications
  - Power Type Domestic Simplex Outlet
  - Power VAC 120
  - Power AMPS 15
  - Circuit Breaker No Circuit Breaker
  - SSCR Rating 10kA
- Geometric Data
  - Enclosure Rating IP66, IP69, IP69K (with lid retention hardware)
  - Size 3"
  - Conduit Knockout 2 1/2"
  - Hole Saw 3"
  - Environmental Rating UL Type 1, 2, 3, 3X, 3R, 3RX, 4, 4X, 5, 12, 12K, 13
  - Latch Type 304 Stainless Steel
  - Cover Polycarbonate, UV Rated
- Commercial Data
  - Country of Origin US
  - Schedule B Code 8537.10.9090

Approvals / Certifications

- Logo
- Approval
- Additional Text
- Certificate name
- UL

  Underwriters Laboratories Inc.

  Specification
  - Addditions Approval TextEnvironmental-Rated Accessories for Enclosures
  - Certificate nameE488493
  show more
- Environmental-Rated Accessories for Enclosures
- E488493
- CSA

  Canadian Standards Association

  Specification
  - Addditions Approval TextOutlets Rated for 5A Max for Computer Use Only
  - Certificate nameFile # LR110845
  show more
- Outlets Rated for 5A Max for Computer Use Only
- File # LR110845
- RoHS

  Restriction of Hazardous Substances

  Specification
  - Addditions Approval Text
  - Certificate nameGP0233-0425-A-RH
  show more
- GP0233-0425-A-RH
- CE

  European Conformity

  Specification
  - Addditions Approval Text
  - Certificate nameGP0156-0425-A-CE
  show more
- GP0156-0425-A-CE
