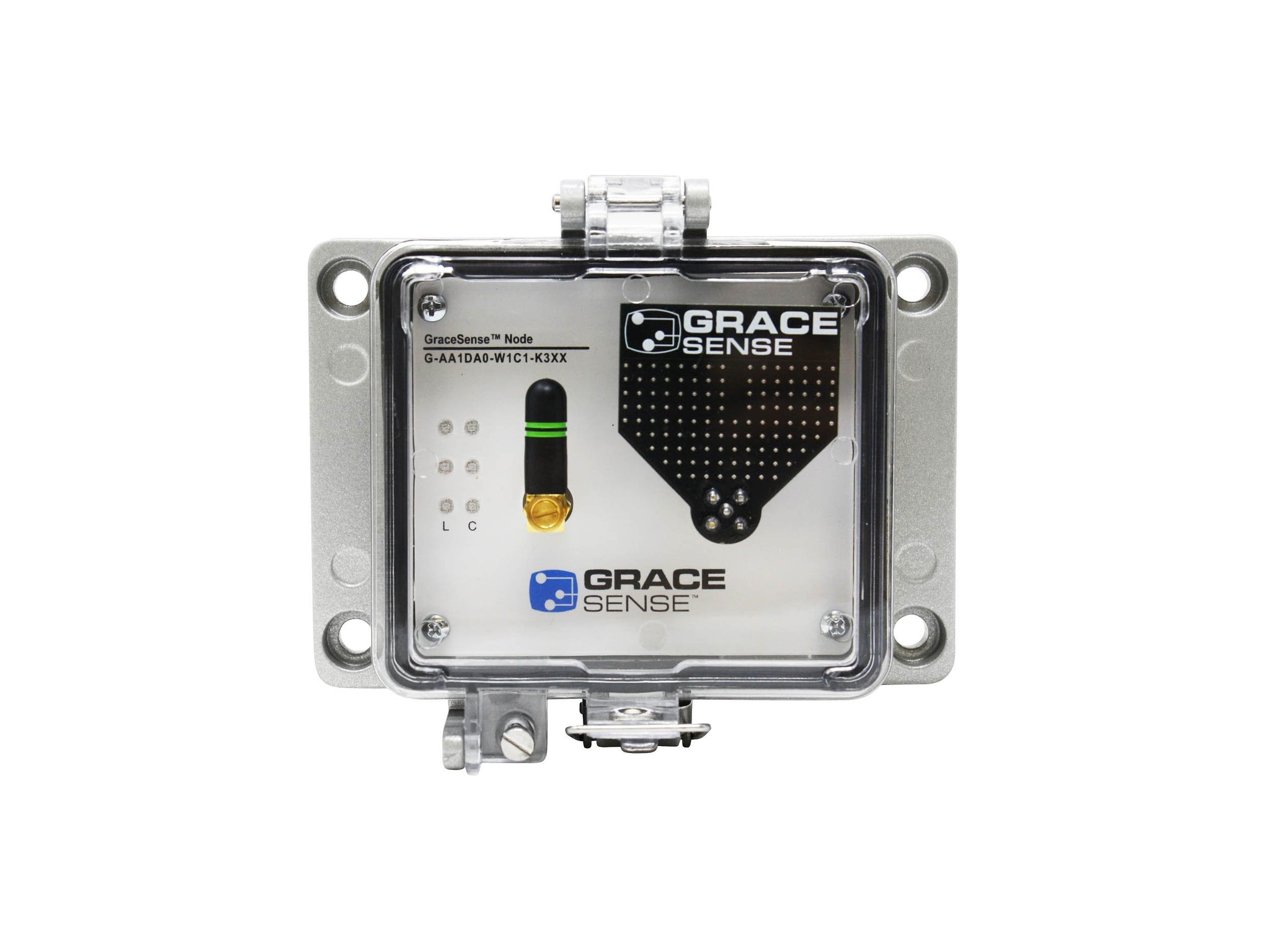

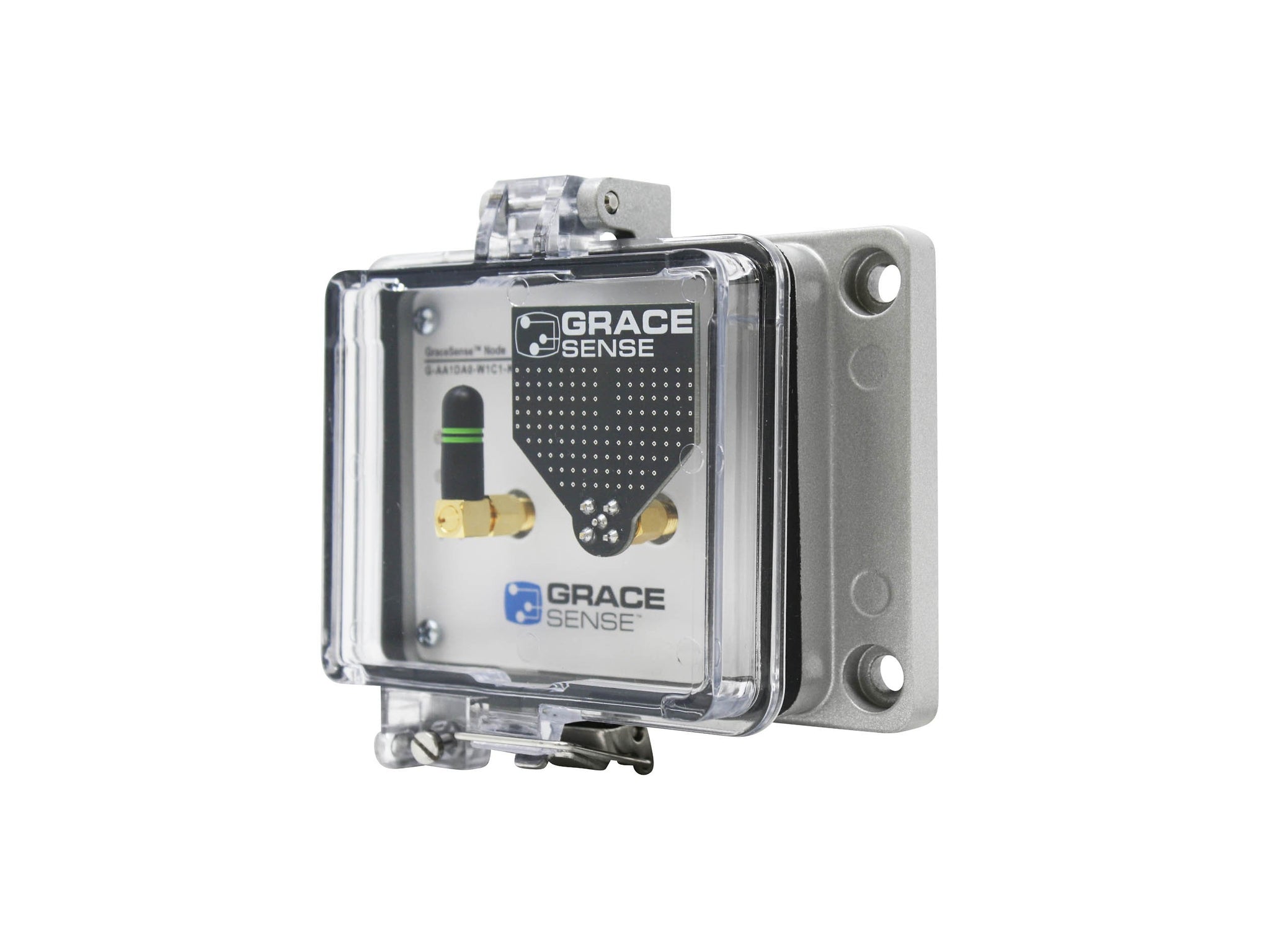

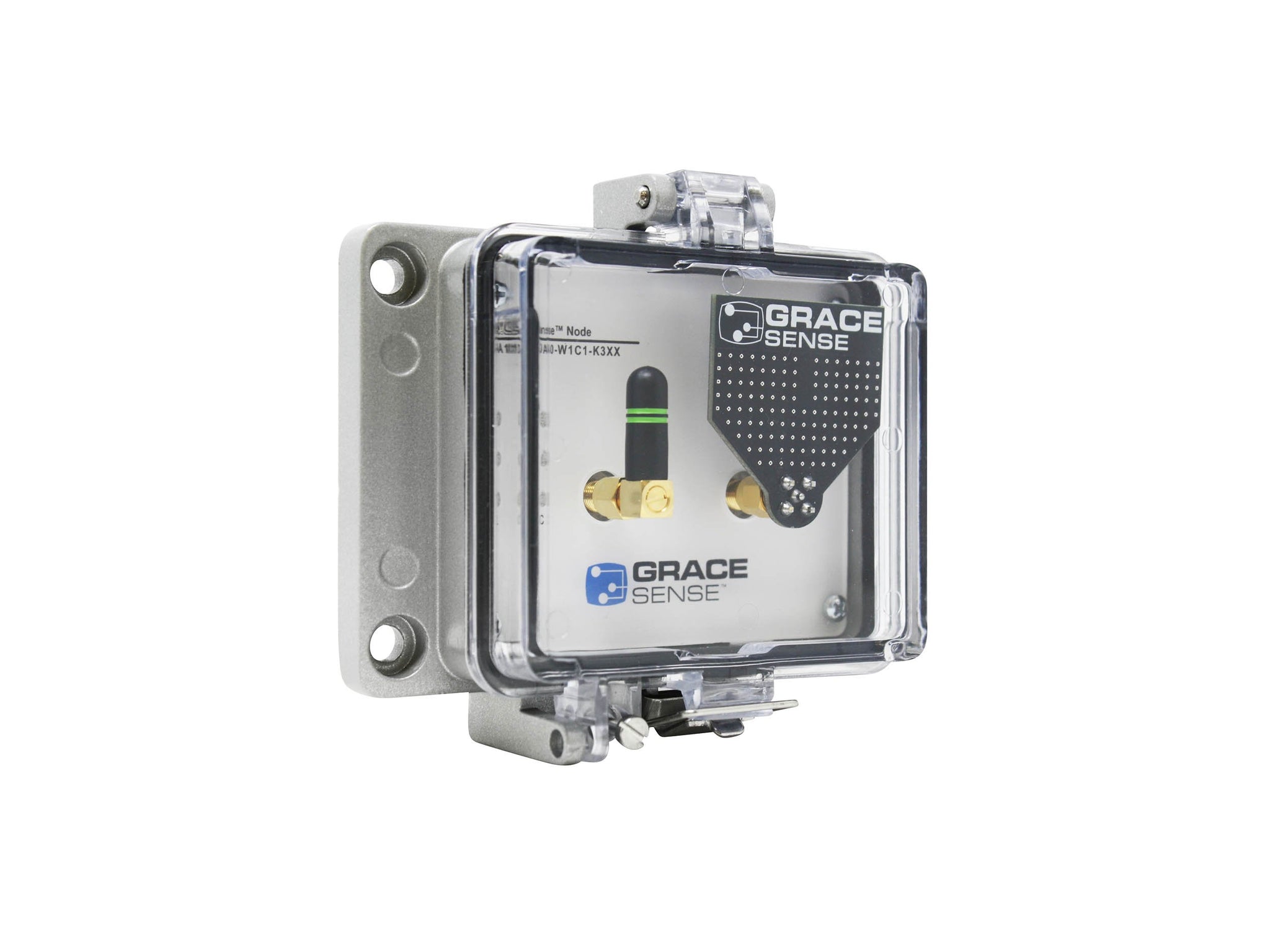

G-AA1DA0-W1C1-K3XX | LTE CloudGate
CloudGate configured for up to 2 thermistors and 4 analog based sensors and 1 I2C port, 1 RS 485 Port and 1 SPI Port. Has IEEE 802.15.4 wireless communication and cloud connectivity via LTE for the CloudGate and all of it's leaf node sensors. Includes a panel-mount IP65 rated enclosure and powered by 24VDC.
List Price
- Regular price
- $1,189.00
- Sale price
- $1,189.00
- Product Specifications
- Component Details
- Part Number G-AA1DA0-W1C1-K3XX

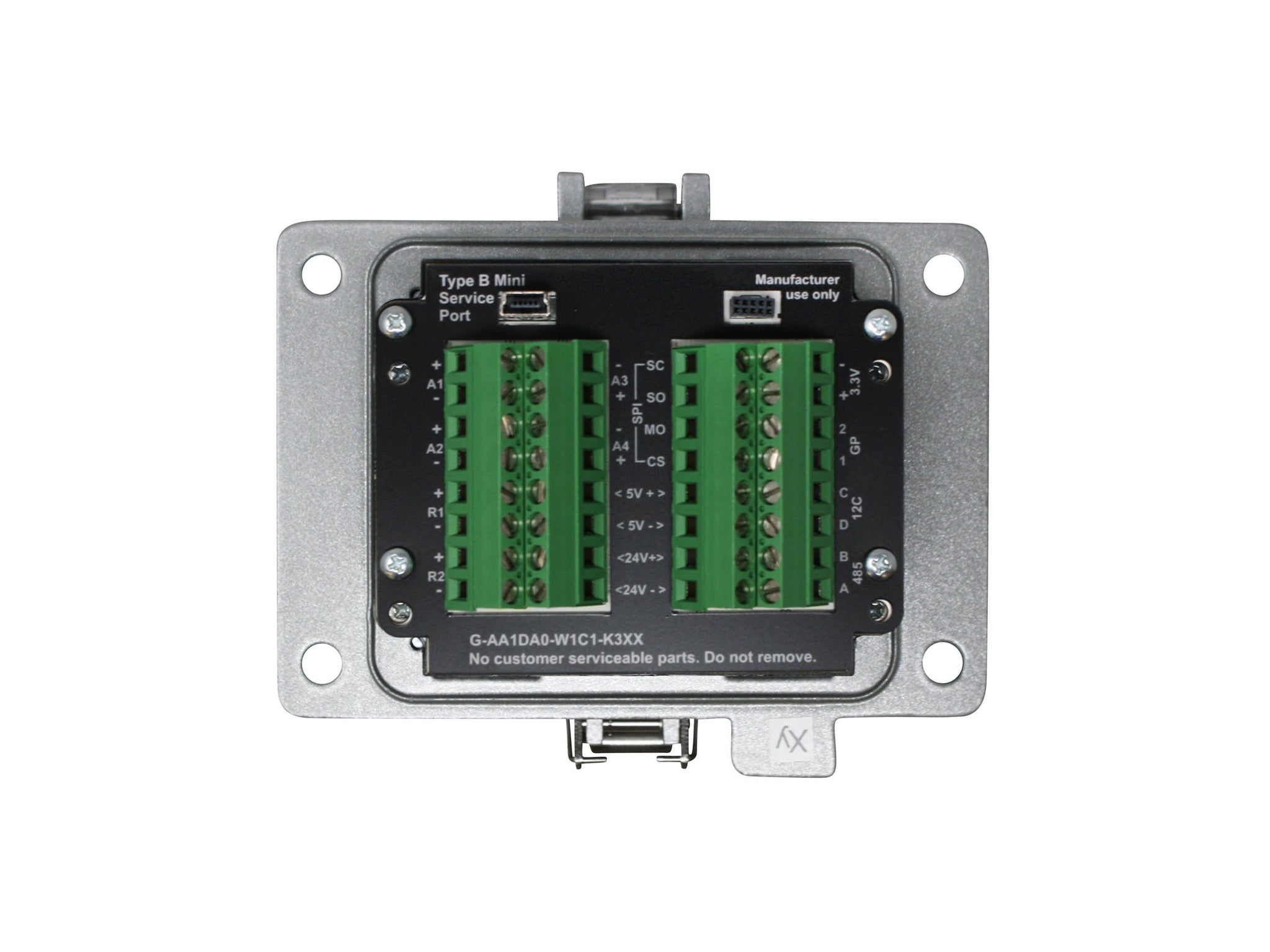

- Includes Up to two 10kΩ (thermistor) and four 0-10V DC inputs, 12-bit, One 12C Port, One RS-485 Port, One SPI Port, AT&T LTE
- Electrical Specifications
- Power Source 24V
- Wireless Protocol IEEE 802.15.4 (Zigbee Compatible)
- Cloud Communication Protocols AT&T LTE
- Operating Frequency 2400 - 2483.5 MHz
- Operating Temperature Range 0°C to 50°C
- Number of Inputs 9 Channels (two 10kΩ, four 0-10V)
- Digital Sensor Communication Inputs 3 Channels (I2C, RS-485, SPI)
- Mechanical Specifications
- Mounting Panel-Mount or Stand-Alone
- Environmental Rating IP65
- Geometric Data
- Width 5.08 in
- Height 3.54 in
- Depth 1.60 in
- Commercial Data
- Country of Origin US
- Component Details
