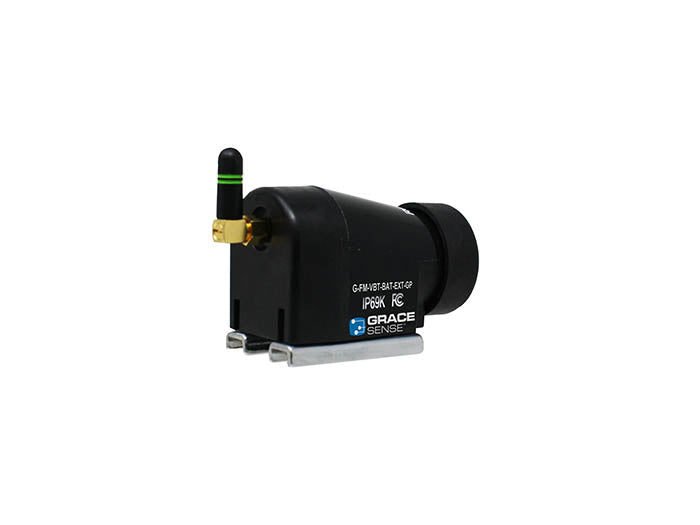

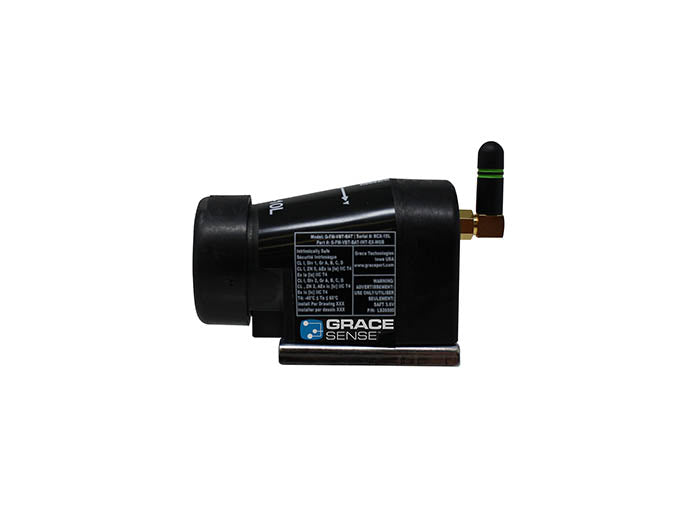

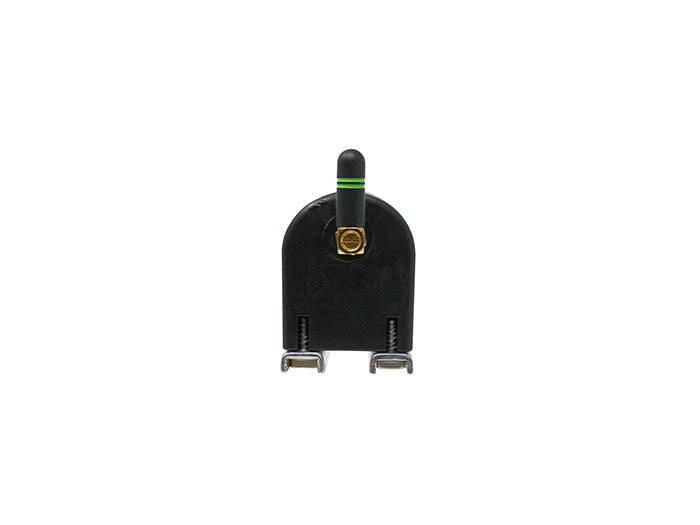

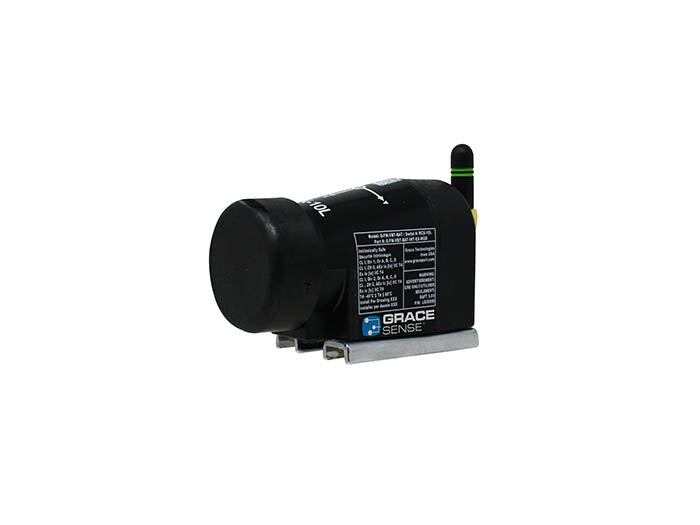

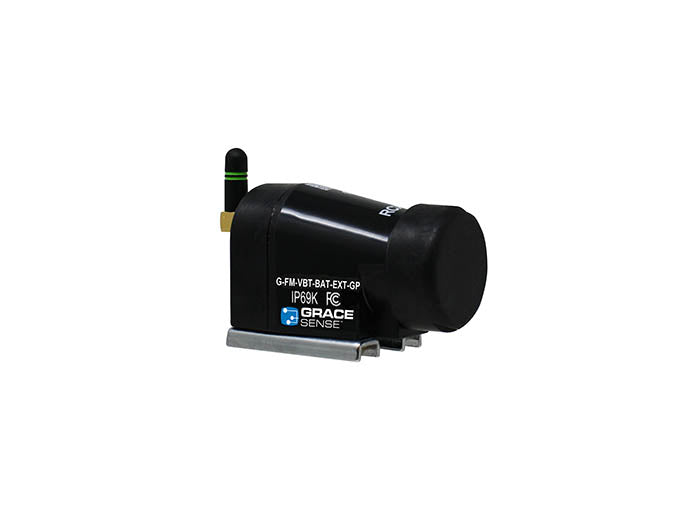

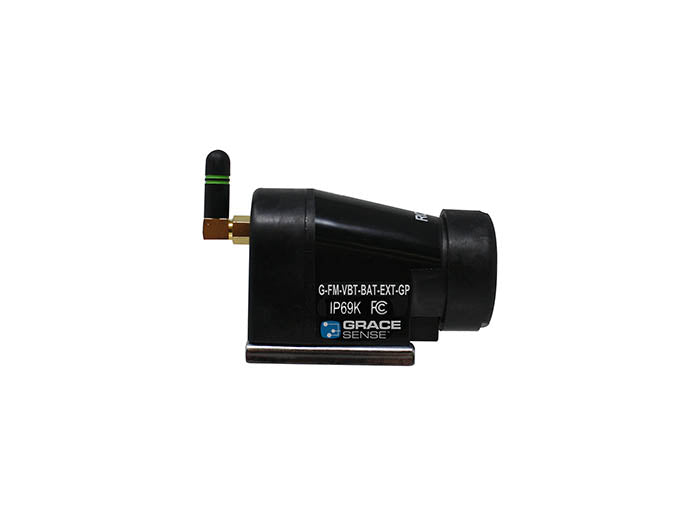

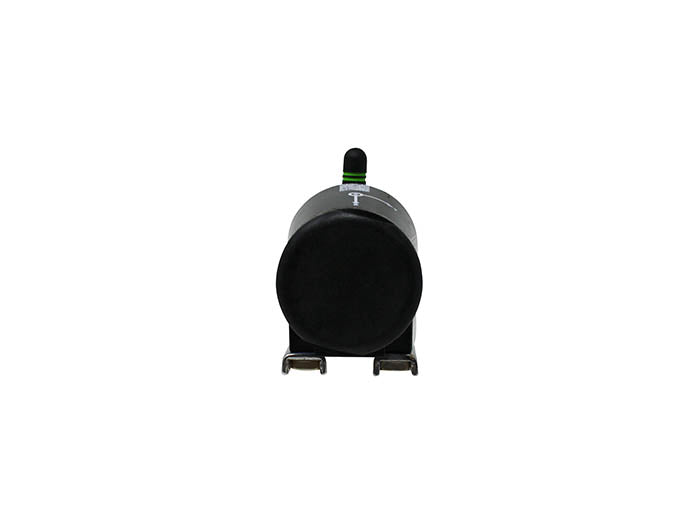

G-FM-VBT-BAT-EXT-GP-MG-WB | Wireless Vibration Sensor
3rd Gen Wireless Vibration and Temperature Sensor, that is easy to install with a magnetic base and provides continuous vibration analysis of critical equipment.
List Price
- Regular price
- $599.00
- Sale price
- $599.00
- Product Specifications
- Component Details
- Part Number G-FM-VBT-BAT-EXT-GP-MG-WB
- Electrical Specifications
- Wireless Protocol IEEE 802.15.4, 50m Line of Sight
- Antenna Type RP-SMA External Antenna with Right Angle Whip
- Battery Replaceable, Non-Rechargeable Lithium Metal Battery
- Battery Life 10 Years at 1 Hour Sampling Rate
- Operating Frequency 2400 - 2483.5 MHz
- Sampling Rate Up to 25.6kHz
- Measurement Range Auto-Ranging ±2g, ±4g, ±8g, ±16g
- Mechanical Specifications
- Operating Range -40°C to 80°C
- Environmental Ratings IP65
- Geometric Data
- Mounting Magnetic and Epoxy
- Commercial Data
- Country of Origin US
- Component Details
2D PDF File
2D DWG File
3D STEP File
Product Bulletin
