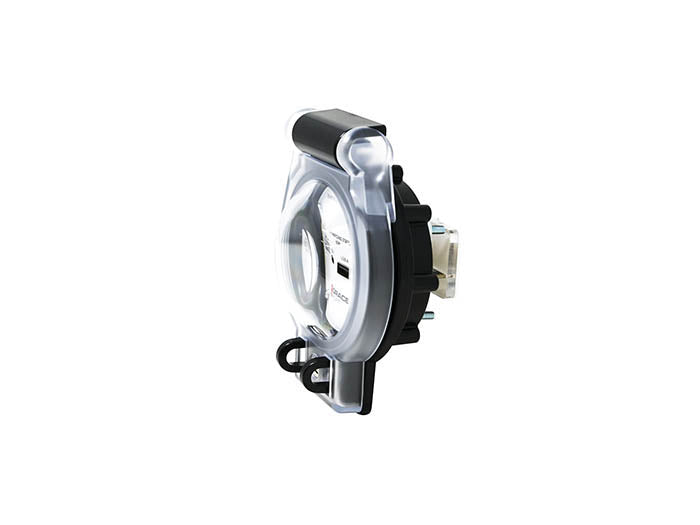

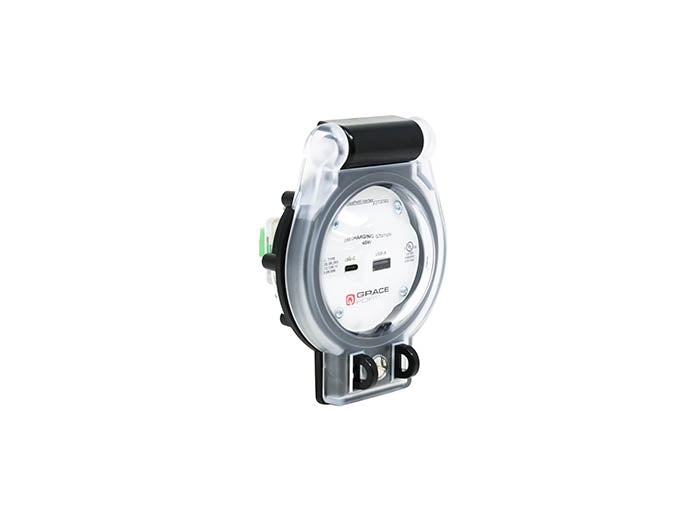

P-C1-R3RX | 3" Round Panel Interface Connector
UL Listed Panel Interface Connector with USB-C, USB-A Charging Module; Round Panel Mount Round Housing (3 in); No Power Option
List Price
- Regular price
- $305.00
- Sale price
- $305.00
- Product Specifications
- Product Description
- Panel Interface Connector that typically mounts to the outside of a control panel housing. These programming ports eliminate the need to open the panel door and improve safety and compliance to NFPA 70e. We offer 15,000+ combinations of components and outlets.
- Component Details
- Component Code C1
- Component Quantity 1
- Component Description USB-C, USB-A Charging Module
- Component Type Cable
- Gender Front USB-C-F and USB-A-F

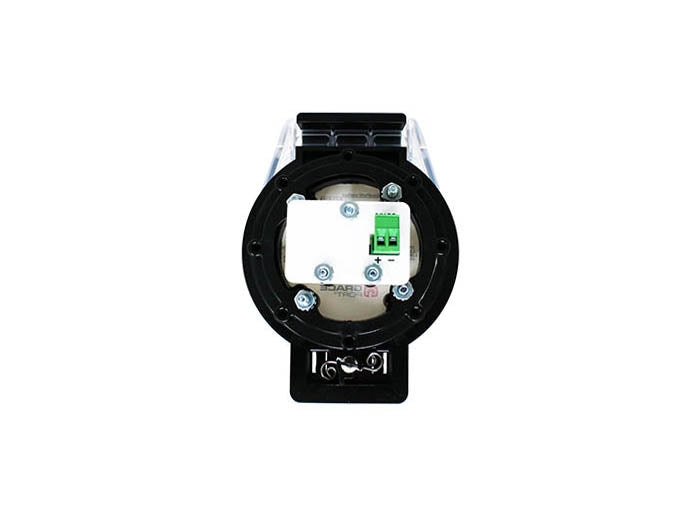

- Gender Back 24V Terminal
- Electrical Specifications
- Power Type No Power Option
- Geometric Data
- Enclosure Rating IP66, IP69, IP69K (with lid retention hardware)
- Size 3"
- Conduit Knockout 2 1/2"
- Hole Saw 3"
- Environmental Rating UL Type 1, 2, 3, 3X, 3R, 3RX, 4, 4X, 5, 12, 12K, 13
- Latch Type 304 Stainless Steel
- Cover Polycarbonate, UV Rated
- Commercial Data
- Country of Origin US
- Schedule B Code 8537.10.9090
- Product Description
Approvals / Certifications
-
- Logo
- Approval
- Additional Text
- Certificate name
-
-
-
UL
Underwriters Laboratories Inc.
show moreSpecification
- Environmental-Rated Accessories for Enclosures
- E488493
-
-
-
-
-
CSA
Canadian Standards Association
show moreSpecification
- Outlets Rated for 5A Max for Computer Use Only
- File # LR110845
-
-
-
-
-
RoHS
Restriction of Hazardous Substances
show moreSpecification
- GP0231-0425-A-RH
-
-
-
-
-
CE
European Conformity
show moreSpecification
- GP0154-0425-A-CE
-
-
ThruView 360 Product Bulletin
ThruView 360 Product Bulletin Spanish
ThruView 360 Installation Guide
GracePort Datasheet
