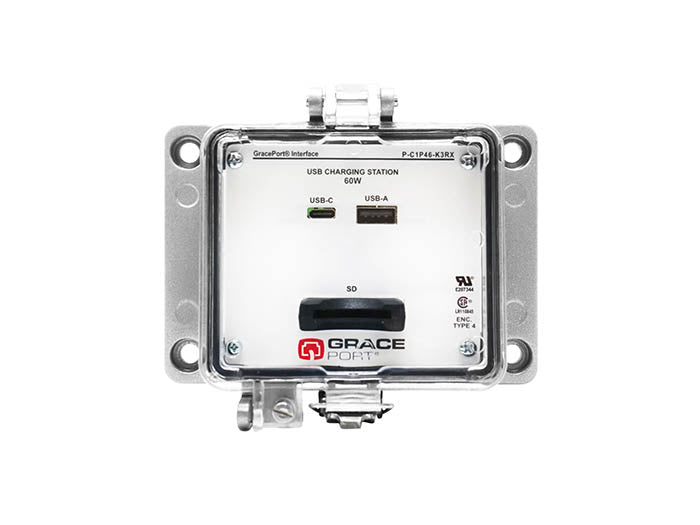

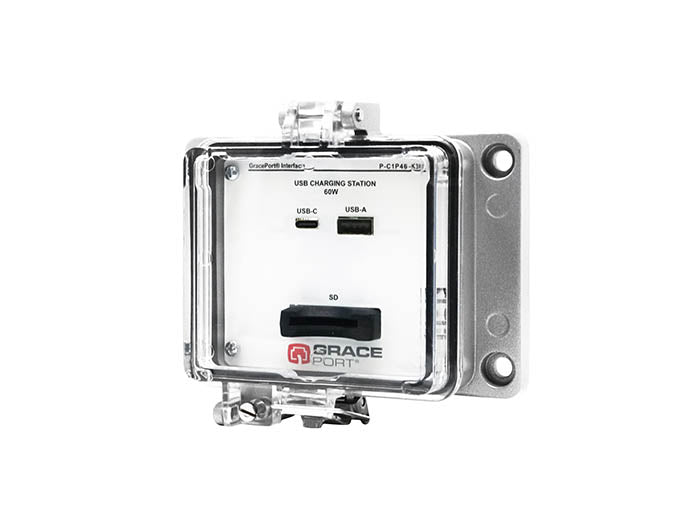

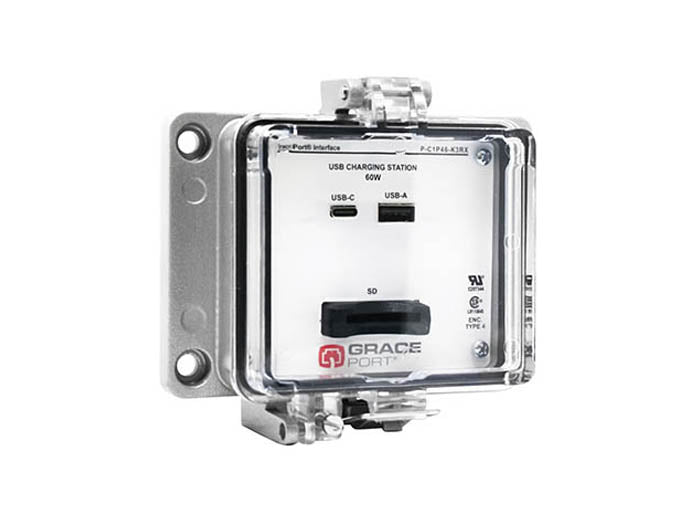

P-C1P46-K3RX | Panel Interface Connector
Panel Interface Connector with USB-C, USB-A Charging Module; P46 Component; Panel Mount Housing (5.08 in x 3.54 in), UL Type 4; No Power Option
Web Price
- Regular price
- $494.00
- Sale price
- $494.00
- Product Specifications
- Product Description
- Panel Interface Connector that typically mounts to the outside of a control panel housing. These programming ports eliminate the need to open the panel door and improve safety and compliance to NFPA 70e. We offer 15,000+ combinations of components and outlets.
- Component Details
- Component Code C1
- Component Quantity 1
- Component Description USB-C, USB-A Charging Module
- Component Type Cable
- Gender Front USB-C-F and USB-A-F

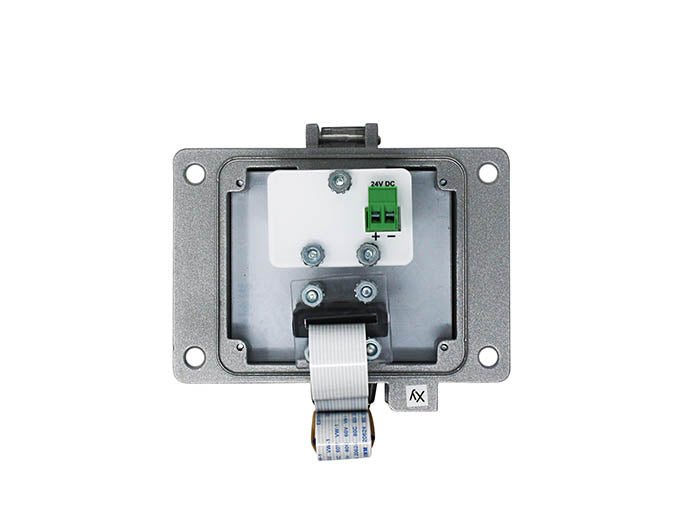

- Gender Back 24V Terminal
- Component Code P46
- Component Quantity 1
- Component Description SD Card Extension
- Cable Length 20 FT
- Cable Length 26 FT
- Electrical Specifications
- Power Type No Power Option
- Mechanical Specifications
- Enclosure Rating IP65
- Size K Size Housing
- Environmental Rating UL Type 4
- Latch Type 304 Stainless Steel
- Cover Polycarbonate, UV rated
- Geometric Data
- Width 5.08 in
- Height 3.54 in
- Depth 1.60 in
- Commercial Data
- Country of Origin US
- Schedule B Code 8537.10.9090
- UPC Code 842864108849
- Product Description
