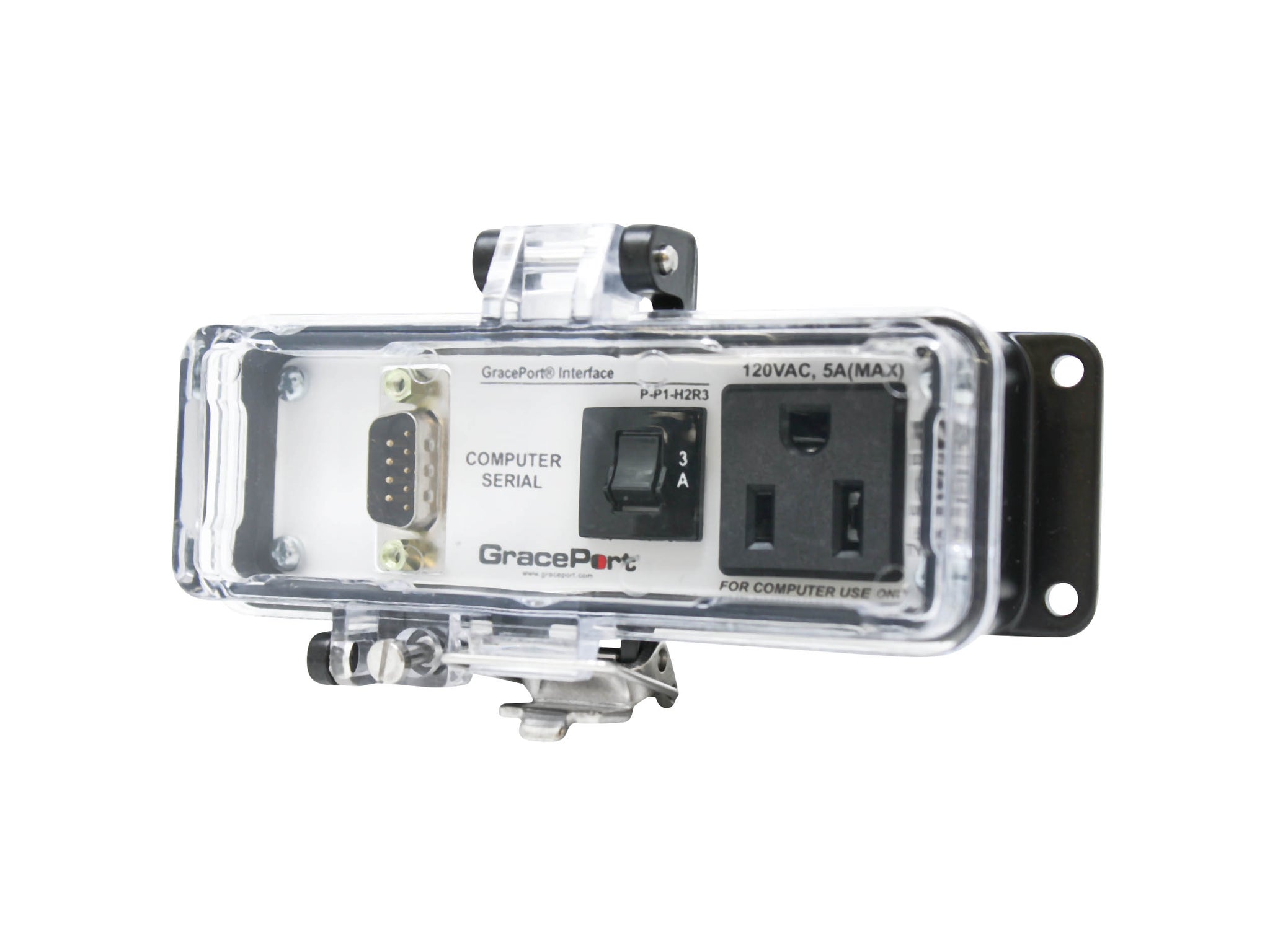

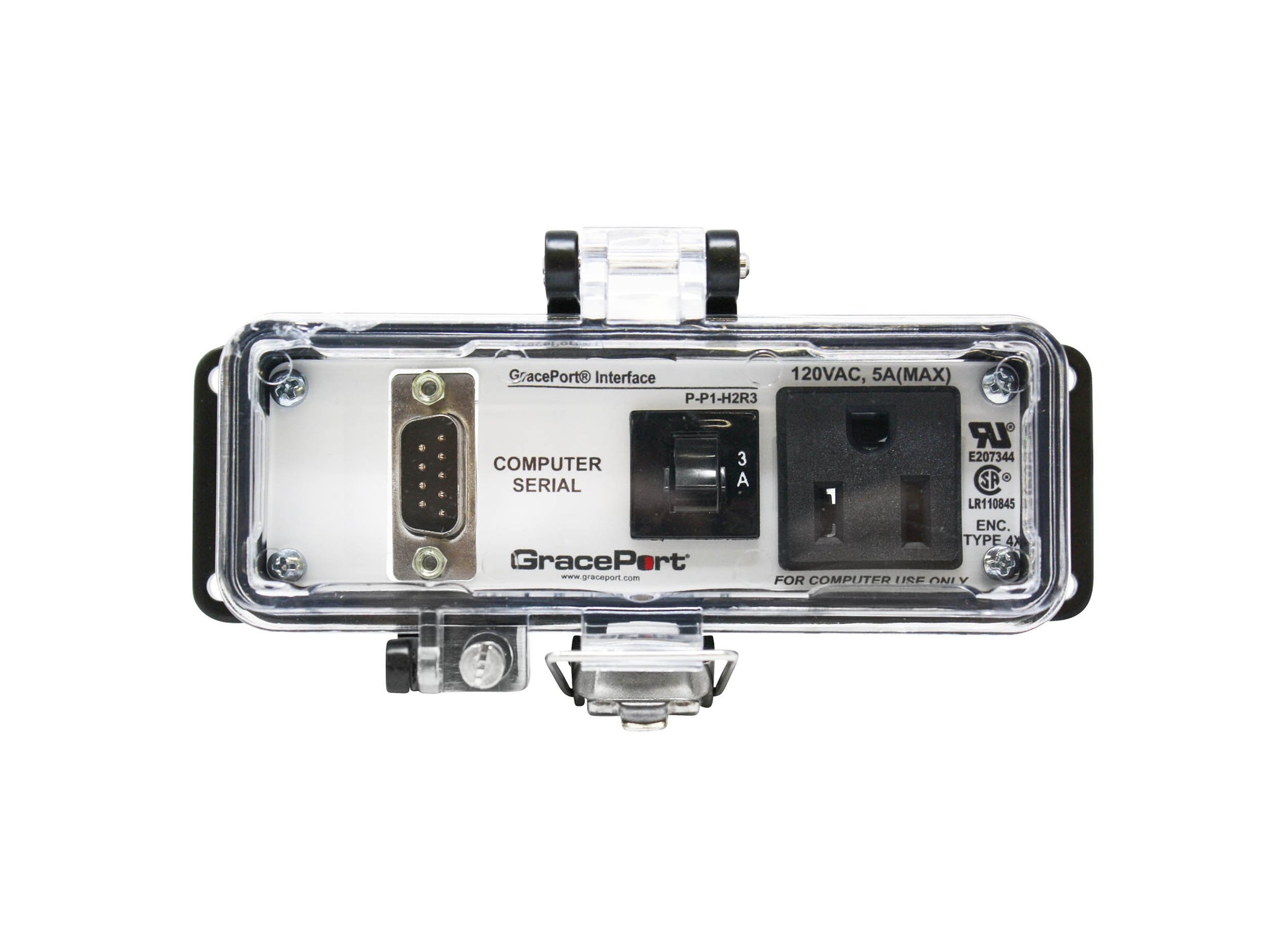

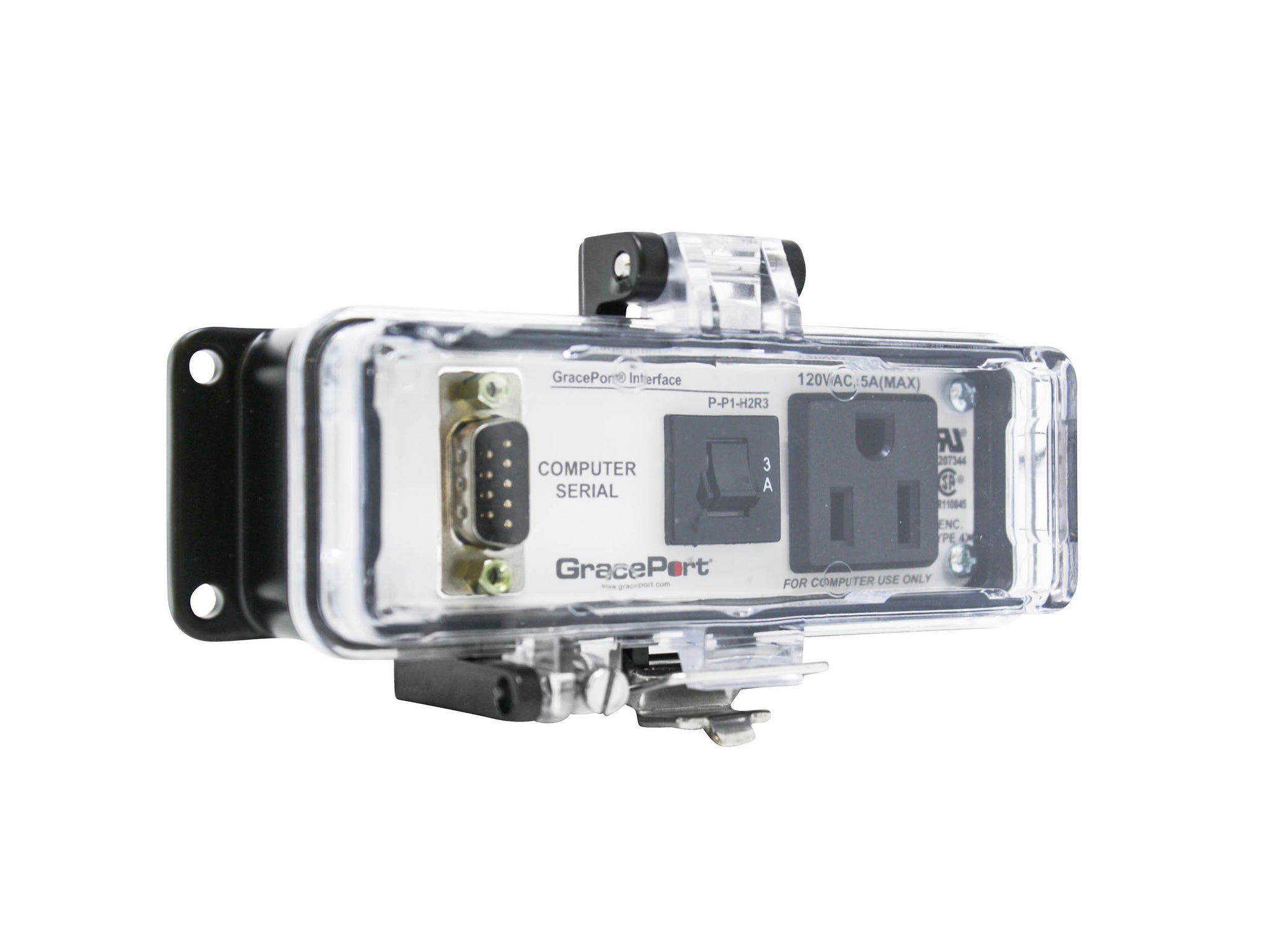

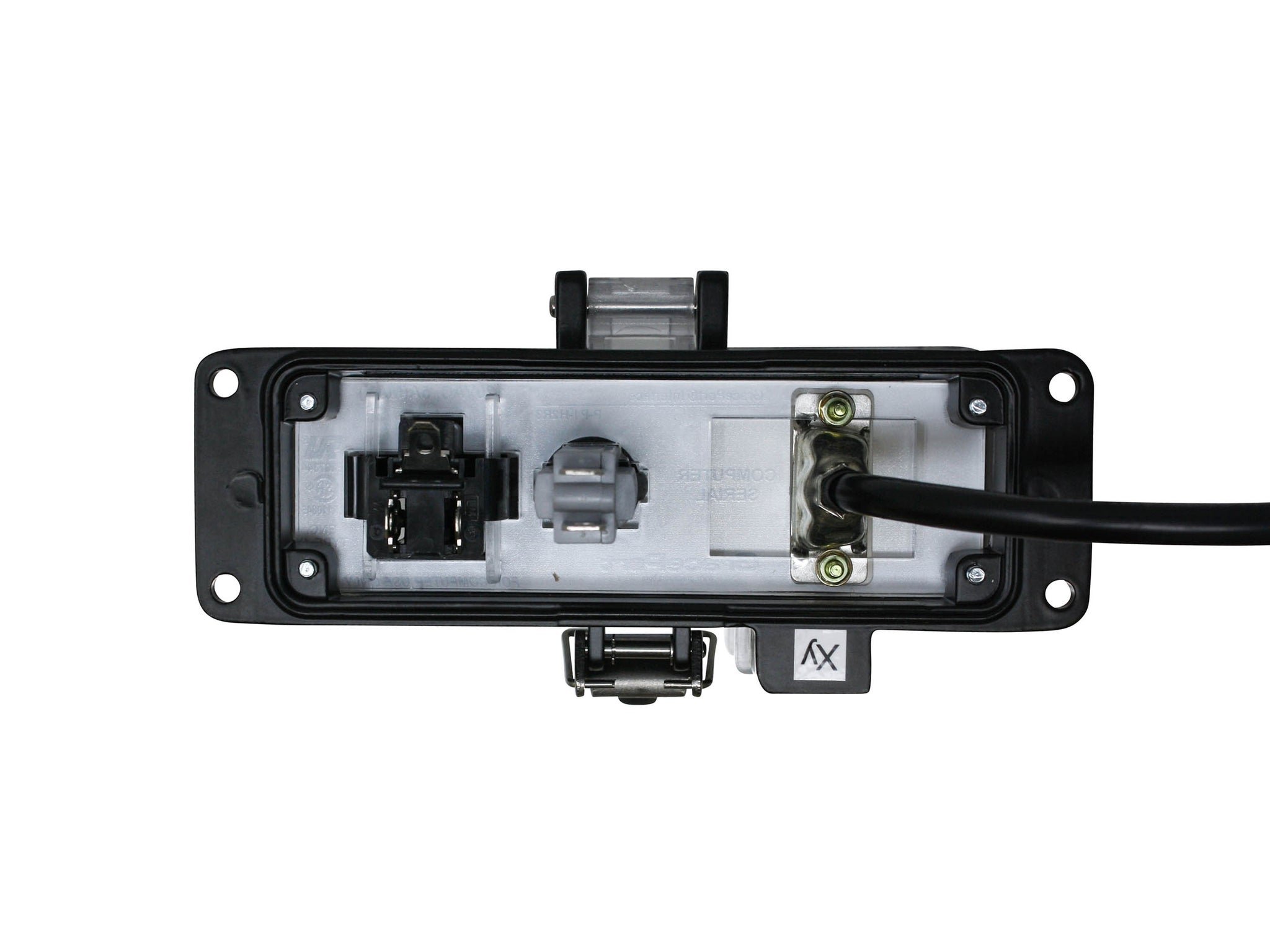

P-P1-H2R3-C7 | Panel Interface Connector
Panel Interface Connector with DB9 Serial (computer inside enclosure) with 7 FT cable; Panel Mount Housing; UL Type 4X; Simplex Outlet; 3 Amp Circuit Breaker
Web Price
- Regular price
- $333.00
- Sale price
- $333.00
- Product Specifications
- Product Description
- Panel Interface Connector that typically mounts to the outside of a control panel housing. These programming ports eliminate the need to open the panel door and improve safety and compliance to NFPA 70e. We offer 15,000+ combinations of components and outlets.
- Component Details
- Component Code P1
- Component Quantity 1
- Component Description DB9 M/F
- Component Type Cable
- Cable Length 7 FT
- Gender Front DB9 Male
- Gender Back DB9 Female
- Electrical Specifications
- Power Type Domestic Simplex Outlet
- Power VAC 120
- Power AMPs 15
- Circuit Breaker 3A
- SCCR Rating 0.2kA
- Mechanical Specifications
- Enclosure Rating IP65
- Housing Size H Size Housing
- UL Type Type 4X
- Latch Type 304 Stainless Steel
- Cover Polycarbonate, UV rated
- Geometric Data
- Width 5.51 in
- Height 1.72 in
- Depth 1.60 in
- Commercial Data
- Country of Origin US
- Schedule B Code 8537.10.9090
- Product Description
Approvals / Certifications
-
- Logo
- Approval
- Additional Text
- Certificate name
-
-
-
RoHS
Restriction of Hazardous Substances
show moreSpecification
- GP0096-0819-A-RH
-
-
2D PDF File
2D DWG File
3D STEP File
GracePort Datasheet
GracePort Datasheet Spanish
Panel Mount Housing Installation Guide
