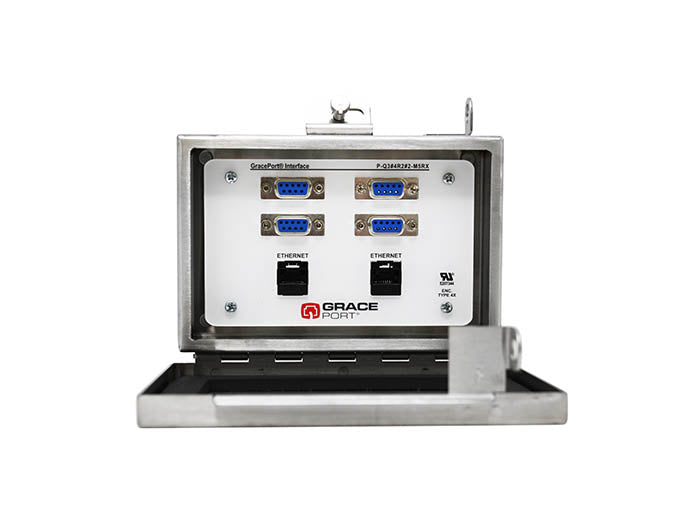

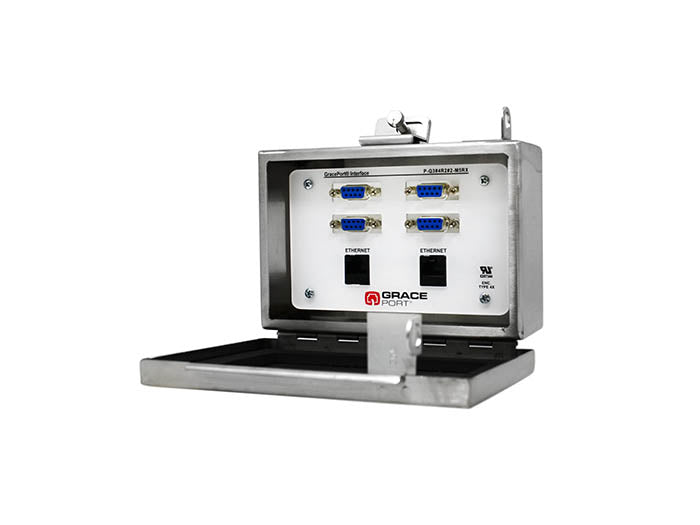

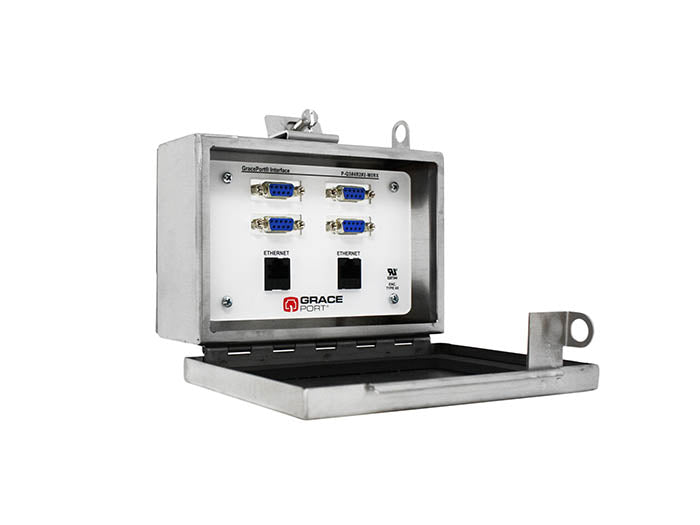

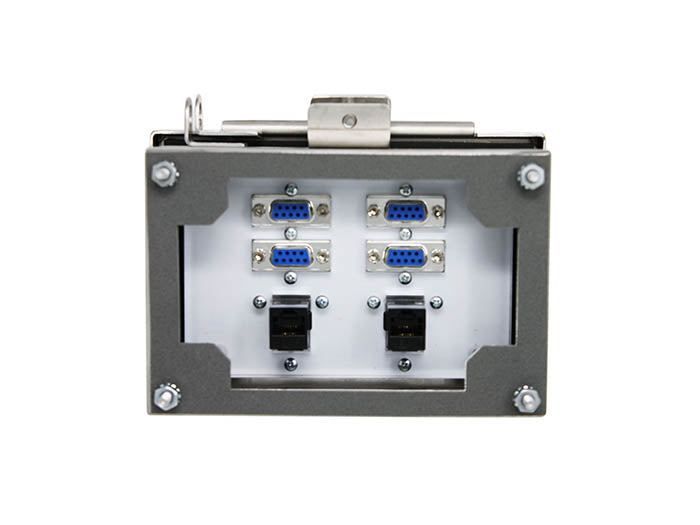

P-Q3#4R2#2-M5RX | Stainless Steel Ethernet Panel Interface Connector
Panel Interface Connector with DB-9 F/F [Qty 4]; Category 5e Ethernet [Qty 2]; Stainless Steel Panel Mount Housing (6.50 in x 3.78 in), UL Type 4X; No Power Option
Web Price
- Regular price
- $737.00
- Sale price
- $737.00
- Product Specifications
- Product Description
- Panel Interface Connector that typically mounts to the outside of a control panel housing. These programming ports eliminate the need to open the panel door and improve safety and compliance to NFPA 70e. We offer 15,000+ combinations of components and outlets.
- Component Details
- Component Code Q3
- Component Quantity 4
- Component Description DB-9 F/F
- Component Type Bulkhead
- Gender Front F
- Gender Back F
- Component Code R2
- Component Quantity 2
- Component Description Category 5e RJ45 Ethernet
- Component Type Bulkhead
- Gender Front RJ45-F
- Gender Back RJ45-F
- Electrical Specifications
- Power Type No Power Option
- Mechanical Specifications
- Size Stainless Steel Housing
- Environmental Rating UL Type 4X
- Geometric Data
- Width 6.33 in
- Height 4.34 in
- Depth 2.20 in
- Commercial Data
- Country of Origin US
- Schedule B Code 8537.10.9090
- Product Description
Approvals / Certifications
-
- Logo
- Approval
- Additional Text
- Certificate name
-
-
-
UL
Underwriters Laboratories Inc.
show moreSpecification
- Outlets UL Recognized for 15A
- E207344
-
-
2D PDF File
2D DWG File
3D STEP File
GracePort Datasheet
GracePort Datasheet Spanish
Panel Mount Housing Installation Guide
