G-HSM-600T-DEMO1 | HSM 600 Sales Demo Case

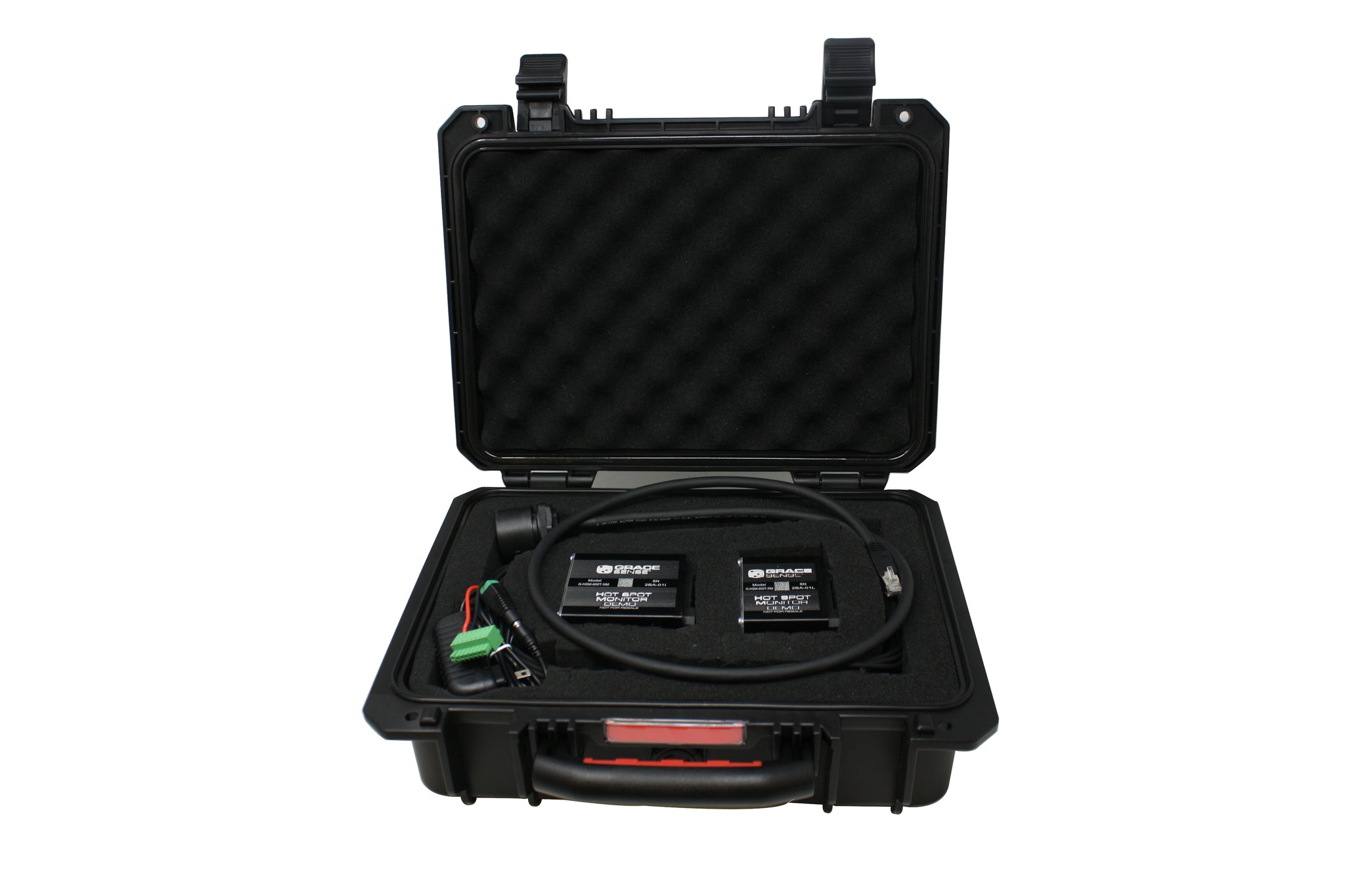

HSM 600 Demo Case includes One Network Module, One Remote Module, Two 0.5M Thermistor Looms, One Male Status Display, One Ethernet cable and Power Supply
List Price
- Regular price
- $645.00
- Sale price
- $645.00
- Product Specifications
- Product Description
- The GraceSense™ HSM 600 is a Continuous Thermal Monitoring (CTM) solution for low-voltage electrical systems. It provides real-time temperature monitoring across switchgear, MCCs, and distribution panels to detect thermal risk early and prevent unplanned downtime. Designed for distributed deployment and PLC/SCADA integration, the HSM 600 delivers 24/7 visibility beyond periodic thermography inspections, supporting modern condition-based maintenance programs
- Component Details
- Part Number G-HSM-600T-DEMO1
- Contents HSM 600 Network Module / Remote Module / (2) 0.5M Thermistor Sensors / Male Status Display / Ethernet Cable / Power Supply / Case
- Electrical Specifications
- Voltage Rating Up to 600VAC
- Input Power 24VDC Input, 1A max, Class 2 or Limited Power Source
- Output Power 24VDC, 18W Max
- Maximum Voltage 24VDC Input
- Power Consumption Approx 1.50 Watts
- Communications EtherNet/IP™, Modbus TCP/IP (AOP Available), DNP3
- Relay Contact Outputs Two Form-C (NO/NC), 24VDC pulsed signal
- Latching Alarm Reset Pushbutton, Web Utility, or PLC
- System Isolation DC/DC Converter (Power), Digital Isolation IC (Communications)
- Onboard Sensors Ambient & Humidity (Dew Point Calculation)
- Onboard Memory 8Mb
- Mechanical Specifications
- Enclosure Material Extruded Aluminum
- Mounting Surface Mount or DIN Rail
- Operating Temperature -20°C to 75°C
- Network Cabling Between SCM Devices RJ45, 600V, Shielded
- Status Display Module Local LED behavior
- Geometric Data
- Width 3.61"
- Height 1.84”
- Length 3.62”
- Commercial Data
- Country of Origin USA
- Schedule B Code 9025.80.4000
- Product Description
Approvals / Certifications
-
- Logo
- Approval
- Additional Text
- Certificate name
-
-
-
UL
Underwriters Laboratories Inc.
show moreSpecification
- E549509
-
-
