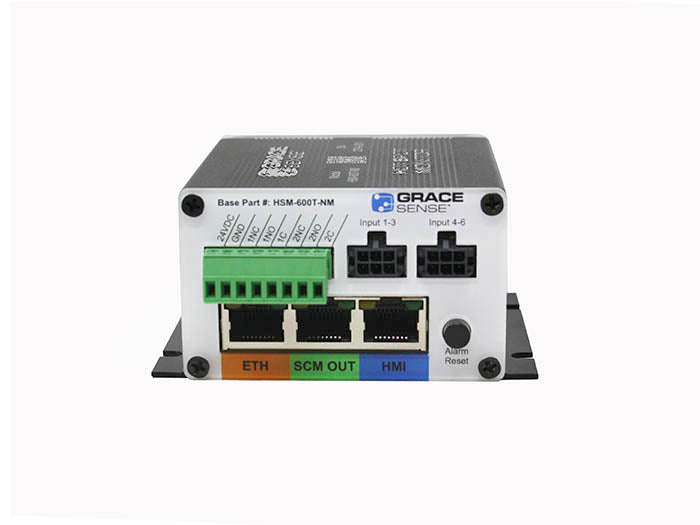

G-HSM-600T-NM-XXXX-XXXX-XXX | Low-Voltage CTM Network Module Kit
Low-Voltage Continuous Thermal Monitoring Network Module (600V Rated) No Thermistors and No Status Display (Network Module Only)
List Price
- Regular price
- $525.00
- Sale price
- $525.00
- Product Specifications
- Product Description
- The GraceSense™ HSM 600 is a Continuous Thermal Monitoring (CTM) solution for low-voltage electrical systems. It provides real-time temperature monitoring across switchgear, MCCs, and distribution panels to detect thermal risk early and prevent unplanned downtime. Designed for distributed deployment and PLC/SCADA integration, the HSM 600 delivers 24/7 visibility beyond periodic thermography inspections, supporting modern condition-based maintenance programs
- Component Details
- Part Number G-HSM-600T-NM-XXXX-XXXX-XXX
- Contents HSM 600 Network Module / No Thermistor Sensors / No Status Display (Network Module Only)
- Electrical Specifications
- Voltage Rating Up to 600VAC
- Input Power 24VDC Input, 1A max, Class 2 or Limited Power Source
- Output Power 24VDC, 18W Max
- Maximum Voltage 24VDC Input
- Power Consumption Approx 1.50 Watts
- Communications EtherNet/IP™, Modbus TCP/IP (AOP Available), DNP3
- Relay Contact Outputs Two Form-C (NO/NC), 24VDC pulsed signal
- Latching Alarm Reset Pushbutton, Web Utility, or PLC
- System Isolation DC/DC Converter (Power), Digital Isolation IC (Communications)
- Onboard Sensors Ambient & Humidity (Dew Point Calculation)
- Onboard Memory 8Mb
- Mechanical Specifications
- Enclosure Material Extruded Aluminum
- Mounting Surface Mount or DIN Rail
- Operating Temperature -20°C to 75°C
- Network Cabling Between SCM Devices RJ45, 600V, Shielded
- Status Display Module Local LED behavior
- Geometric Data
- Width 3.61"
- Height 1.84”
- Length 3.62”
- Commercial Data
- Country of Origin USA
- Schedule B Code 9025.80.4000
- Product Description
Approvals / Certifications
-
- Logo
- Approval
- Additional Text
- Certificate name
-
-
-
UL
Underwriters Laboratories Inc.
show moreSpecification
- E549509
-
-
