Name: P-C3P33P38-R3RX | 3" Round Panel Interface Connector
Brand: Grace Technologies
Price: 302.0 USD
Availability: InStock

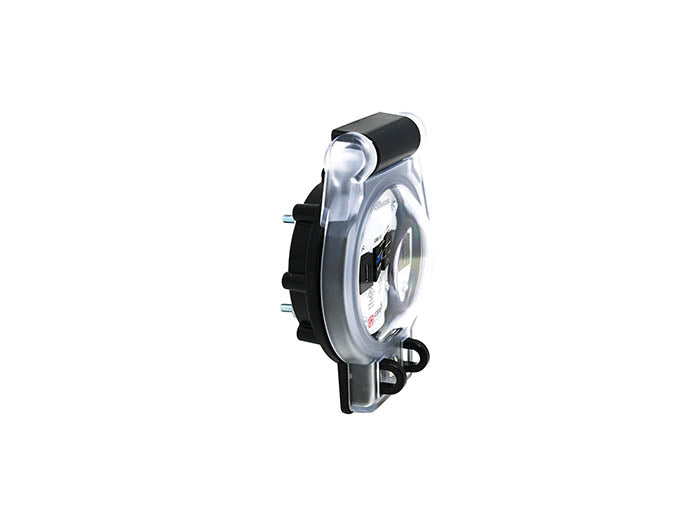

P-C3P33P38-R3RX | 3" Round Panel Interface Connector

UL Listed 3" Round Panel Interface Connector with USB-C Female to Female Pass-Thru Coupler; USB 3.0 A Female to Female Bulkhead; HDMI Female to Female Bulkhead; Panel Mount Round Housing (3 in); No Power Option

List Price

Regular price: $302.00
Sale price: $302.00

Quantity

Quantity must be 1 or more

FIND DISTRIBUTORS Datasheet

Product Details

Product Specifications
- Product Description
  - Panel Interface Connector that typically mounts to the outside of a control panel housing. These programming ports eliminate the need to open the panel door and improve safety and compliance to NFPA 70e. We offer 15,000+ combinations of components and outlets.
- Component Details
  - Component Code C3
  - Component Quantity 1
  - Component Type Bulkhead
  - Gender Front F
  - Gender Back F
  - Component Code P33
  - Component Quantity 1
  - Component Type Bulkhead
  - Gender Front USB 3.0 A-F
  - Gender Back USB 3.0 A-F
  - Component Code P38
  - Component Quantity 1
  - Component Description HDMI Female to Female
  - Component Type Bulkhead
  - Gender Front F
  - Gender Back F
- Electrical Specifications
  - Power Type No Power Option
- Geometric Data
  - Enclosure Rating IP66, IP69, IP69K (with lid retention hardware)
  - Size 3"
  - Conduit Knockout 2 1/2"
  - Hole Saw 3"
  - Environmental Rating UL Type 1, 2, 3, 3X, 3R, 3RX, 4, 4X, 5, 12, 12K, 13
  - Latch Type 304 Stainless Steel
  - Cover Polycarbonate, UV Rated
- Commercial Data
  - Country of Origin US
  - Schedule B Code 8537.10.9090

Approvals / Certifications

- Logo
- Approval
- Additional Text
- Certificate name
- UL

  Underwriters Laboratories Inc.

  Specification
  - Addditions Approval TextOutlets UL Recognized for 15A
  - Certificate nameE207344
  show more
- Outlets UL Recognized for 15A
- E207344
- CSA

  Canadian Standards Association

  Specification
  - Addditions Approval TextOutlets Rated for 5A Max for Computer Use Only
  - Certificate nameFile # LR110845
  show more
- Outlets Rated for 5A Max for Computer Use Only
- File # LR110845
- RoHS

  Restriction of Hazardous Substances

  Specification
  - Addditions Approval Text
  - Certificate nameGP0234-0425-A-RH
  show more
- GP0234-0425-A-RH
- CE

  European Conformity

  Specification
  - Addditions Approval Text
  - Certificate nameGP0157-0425-A-CE
  show more
- GP0157-0425-A-CE
