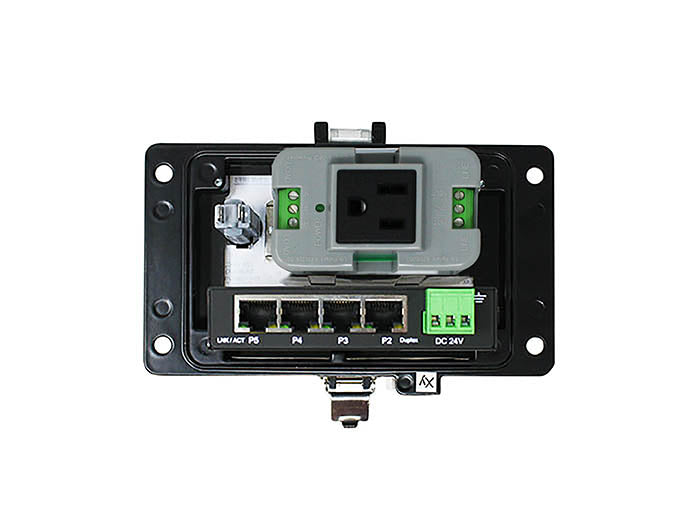

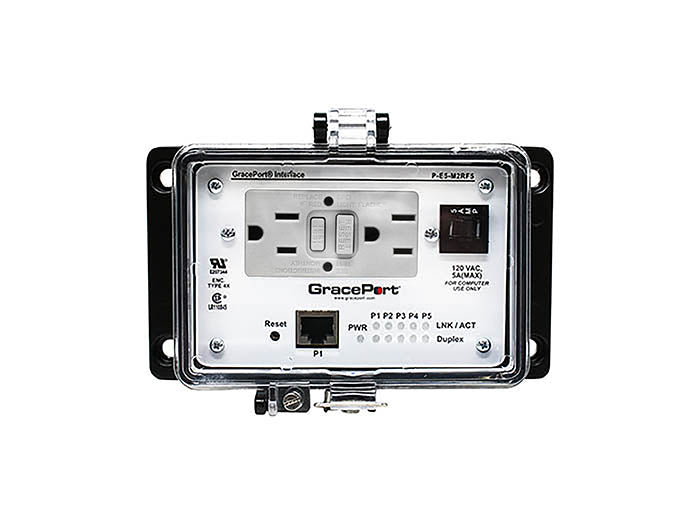

P-E5-M2RF5 | Ethernet Switch Panel Interface Connector
Panel Interface Connector with Ethernet Switch; Panel Mount Housing; UL Type 4X; GFCI Duplex Inside-Outlet; 5 Amp Circuit Breaker
List Price
- Regular price
- $513.00
- Sale price
- $513.00
- Product Specifications
- Product Description
- Panel Interface Connector that typically mounts to the outside of a control panel housing. These programming ports eliminate the need to open the panel door and improve safety and compliance to NFPA 70e. We offer 15,000+ combinations of components and outlets.
- Component Details
- Component Code E5
- Component Quantity 1
- Component Description Ethernet Switch (5 Ports)
- Component Type Unmanaged
- Gender Front RJ45 Female (Qty 1)
- Gender Back RJ45 Female (Qty 4)
- Electrical Specifications
- Power Type Domestic GFCI Inside-Outside Rear Outlet
- Power VAC 125
- Power AMPs 15
- Circuit Breaker 5A
- SCCR Rating 0.2kA
- Mechanical Specifications
- Enclosure Rating IP65
- Housing Size M Size Housing
- UL Type Type 4X
- Latch Type 304 Stainless Steel
- Cover Polycarbonate, UV rated
- Geometric Data
- Width 6.50 in
- Height 3.78 in
- Depth 1.60 in
- Commercial Data
- Country of Origin US
- Schedule B Code 8537.10.9090
- Product Description
Approvals / Certifications
-
- Logo
- Approval
- Additional Text
- Certificate name
-
-
-
RoHS
Restriction of Hazardous Substances
show moreSpecification
- GP0039-0317-B-RH
-
-
