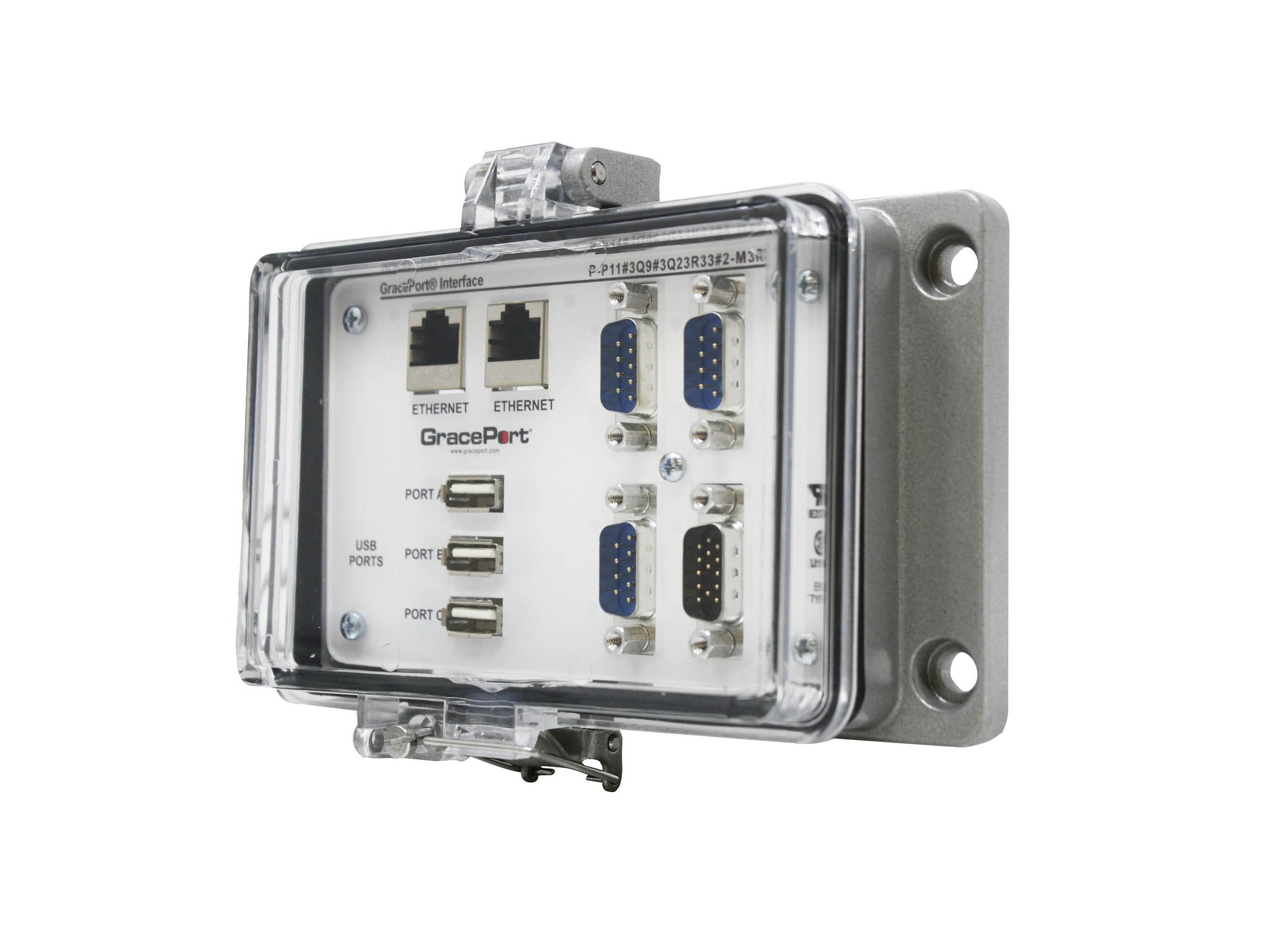

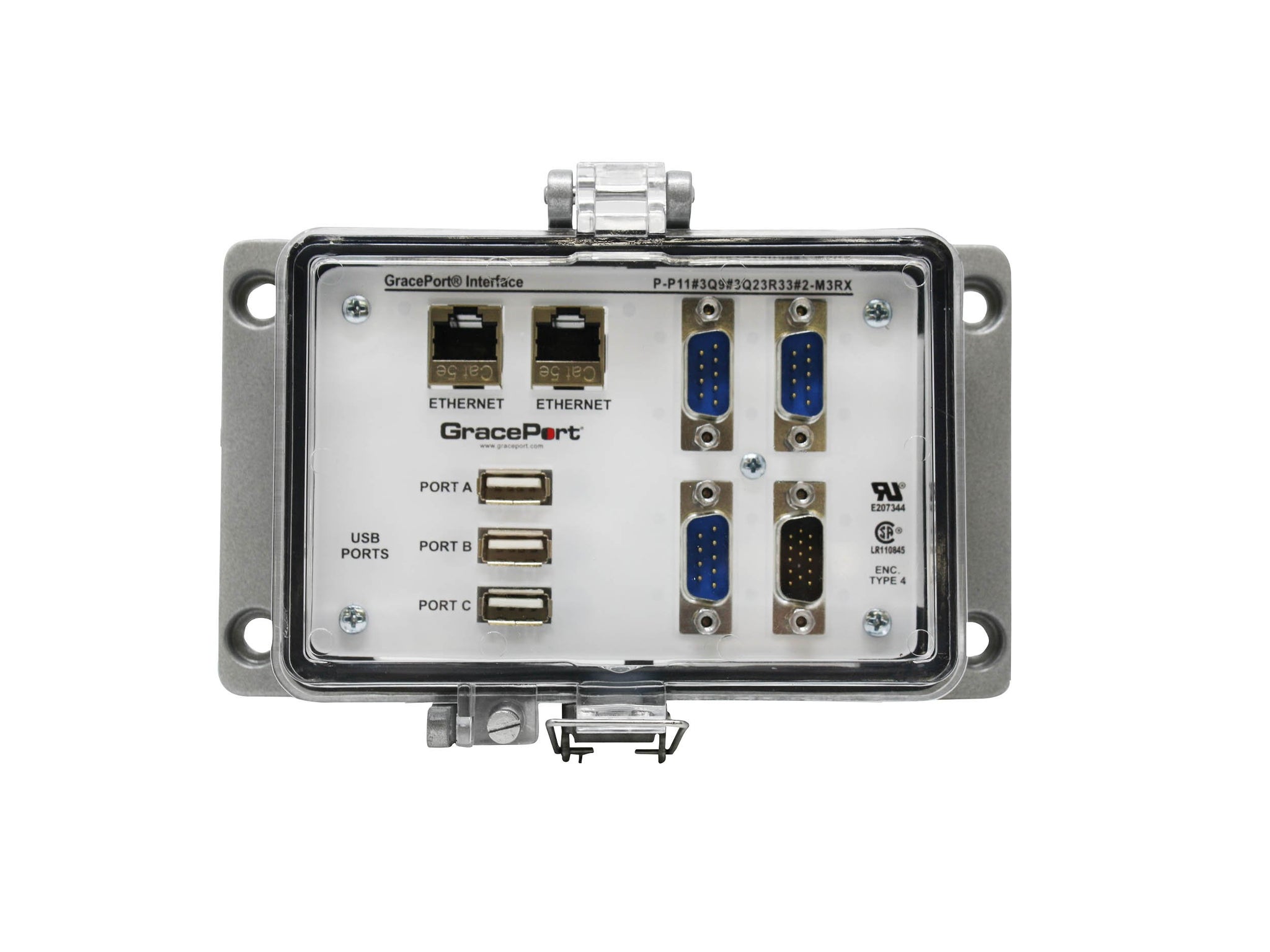

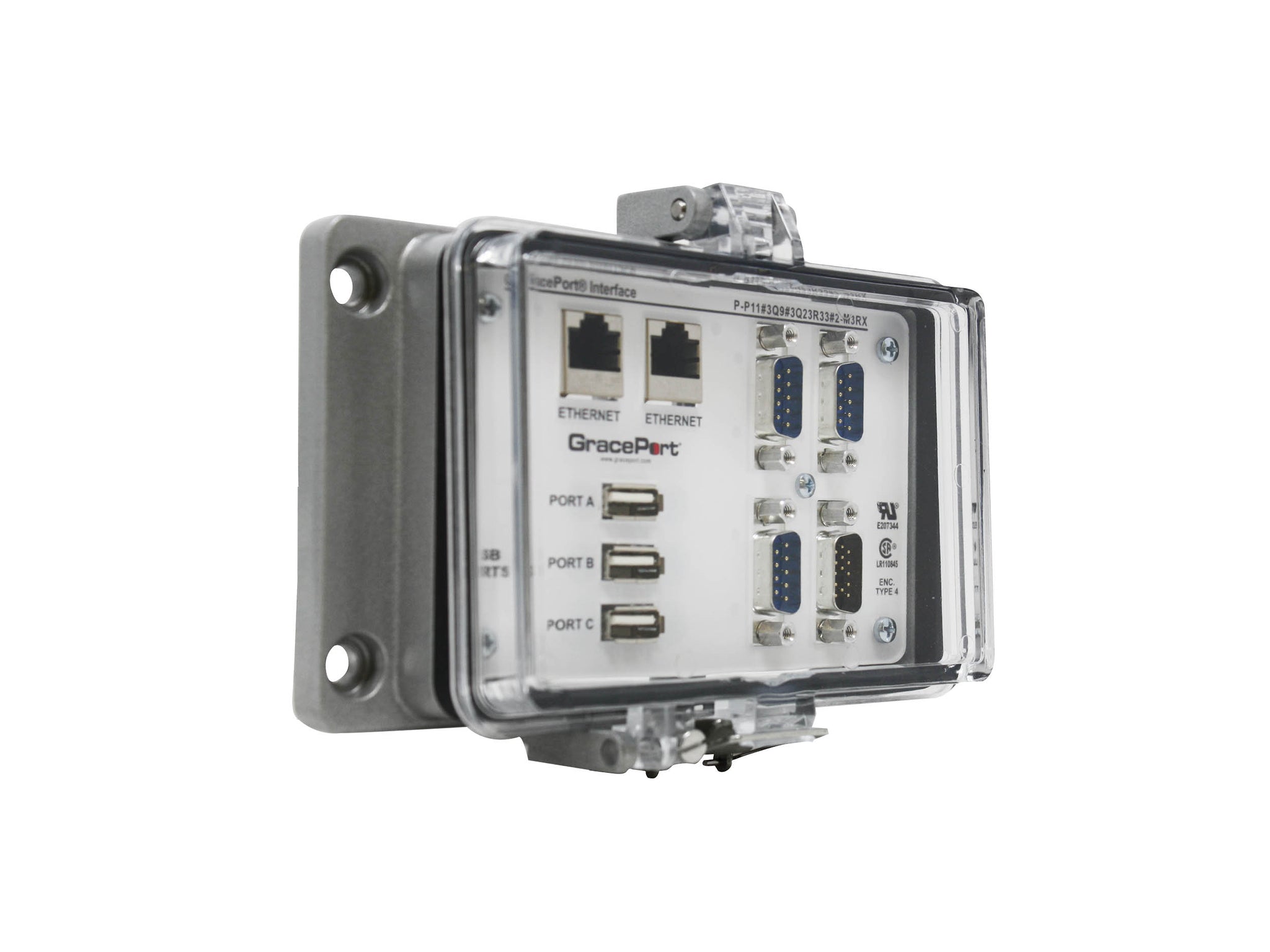

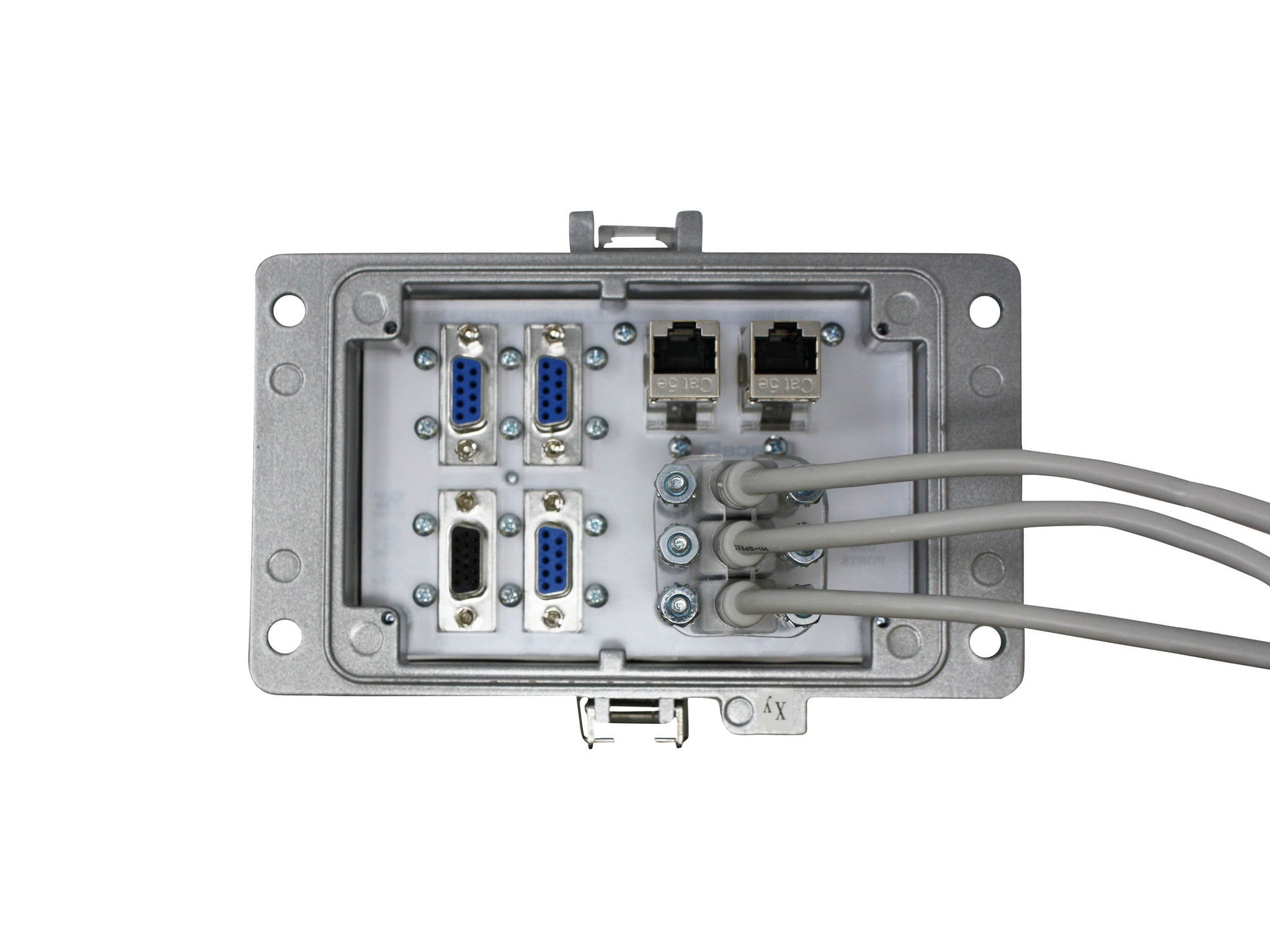

P-P11#3Q9#3Q23R33#2-M3RX | Panel Interface Connector
Panel Interface Connector with USB Type A/F to USB Type A/M [Qty: 3]; DB-9 M/F [Qty: 3]; DB-15HDVGA M/F; Category 5e Shielded Ethernet [Qty: 2]; Panel Mount Housing; UL Type 4; No outlet/power option
List Price
- Regular price
- $887.00
- Sale price
- $887.00
- Product Specifications
- Product Description
- Panel Interface Connector that typically mounts to the outside of a control panel housing. These programming ports eliminate the need to open the panel door and improve safety and compliance to NFPA 70e. We offer 15,000+ combinations of components and outlets.
- Component Details
- Component Code P11
- Component Quantity 3
- Component Description USB Type A-A
- Component Type Cable
- Gender Front USB A-Female
- Gender Back USB A-Male
- Cable Length 10 FT
- Component Code Q9
- Component Quantity 3
- Component Description DB-9 M/F
- Component Type Bulkhead
- Gender Front Male
- Gender Back Female
- Component Code Q23
- Component Quantity 1
- Component Description DB-15 HD VGA M/F
- Component Type Bulkhead
- Gender Front Male
- Gender Back Female
- Component Code R33
- Component Quantity 2
- Component Description Category 5e Shielded RJ45
- Component Type Bulkhead
- Gender Front RJ45 Female
- Gender Back RJ45 Female
- Electrical Specifications
- Power Type No Power Option
- Mechanical Specifications
- Enclosure Rating IP65
- Housing Size M Size Housing
- UL Type Type 4
- Latch Type 304 Stainless Steel
- Cover Polycarbonate, UV rated
- Geometric Data
- Width 6.50 in
- Height 3.78 in
- Depth 1.60 in
- Commercial Data
- Country of Origin US
- Schedule B Code 8537.10.9090
- Product Description
