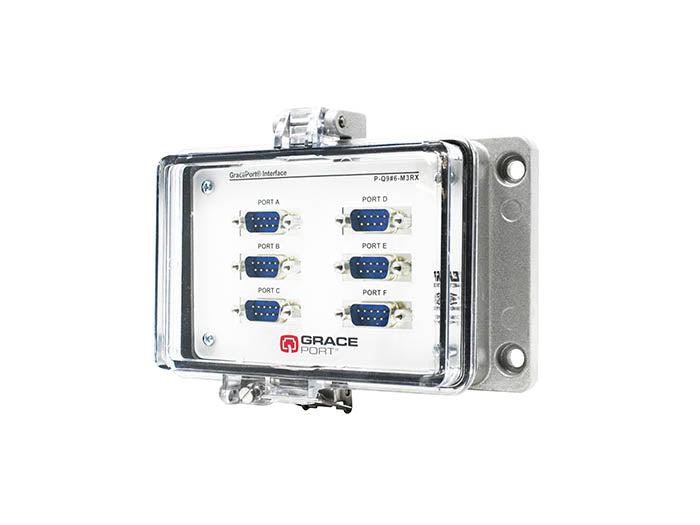

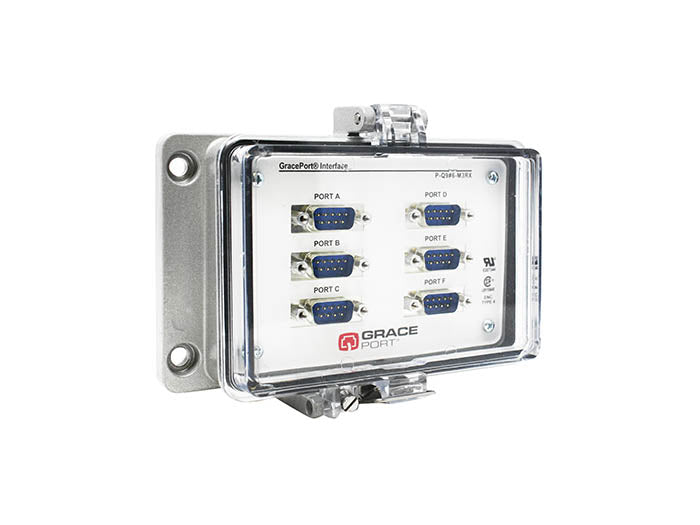

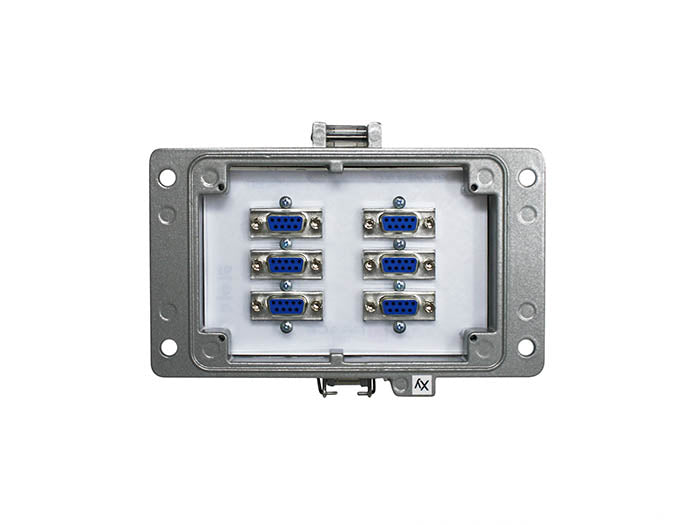

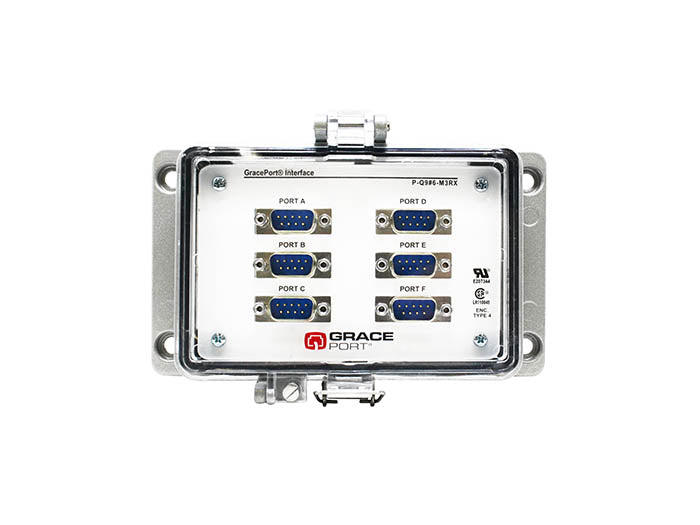

P-Q9#6-M3RX | Panel Interface Connector
Panel Interface Connector with DB-9 M/F [Qty 6]; Panel Mount Housing (6.50 in x 3.78 in), UL Type 4; No Power Option
List Price
- Regular price
- $505.00
- Sale price
- $505.00
- Product Specifications
- Product Description
- Panel Interface Connector that typically mounts to the outside of a control panel housing. These programming ports eliminate the need to open the panel door and improve safety and compliance to NFPA 70e. We offer 15,000+ combinations of components and outlets.
- Component Details
- Component Code Q9
- Component Quantity 6
- Component Description DB-25 M/F
- Component Type Bulkhead
- Gender Front M
- Gender Back F
- Electrical Specifications
- Power Type No Power Option
- Mechanical Specifications
- Enclosure Rating IP65
- Size M Size Housing
- Environmental Rating UL Type 4
- Latch Type 304 Stainless Steel
- Cover Polycarbonate, UV rated
- Geometric Data
- Width 6.50 in
- Height 3.78 in
- Depth 1.60 in
- Commercial Data
- Country of Origin US
- Schedule B Code 8537.10.9090
- Product Description
Approvals / Certifications
2D PDF File
2D DWG File
3D STEP File
GracePort Datasheet
GracePort Datasheet Spanish
Panel Mount Housing Installation Guide
